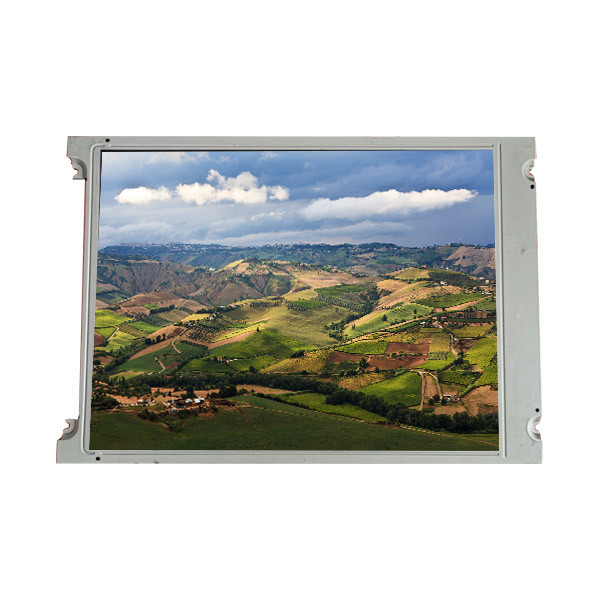

TX15D02VM0CPA 5.8 inch LCD Screen Display Panel LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX15D02VM0CPA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX15D02VM0CPA | Diagonal Size: | 5.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 400(RGB)×240, WQVGA 80PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 126(W)×75.6(H) Mm |
| Brightness: | 360 Cd/m² (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Application: | Industrial | Input Voltage: | 3.3V (Typ.) |
Product Description
TX15D02VM0CPA 5.8 inch LCD Screen Display Panel LCD Module
TX15D02VM0CPA LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX15D02VM0CPA |
| Diagonal Size | 5.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 400(RGB)×240, WQVGA 80PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 126(W)×75.6(H) mm |
| Bezel Opening | - |
| Outline (mm) | 145×90×13.3 (H×V×D) |
| Treatment | - |
| Luminance | 360 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 45 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 262K 60%NTSC |
| Backlight | 3S4PWLED, 70K hours, With LED Driver |
| Mass | 210g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | 4-wire Resistive Touch, F/G |
| Signal Type | CMOS (1 ch, 6-bit), Connector40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| TX15D02VM0CPA 5.8 inch LCD Screen Display Panel LCD Module | |
