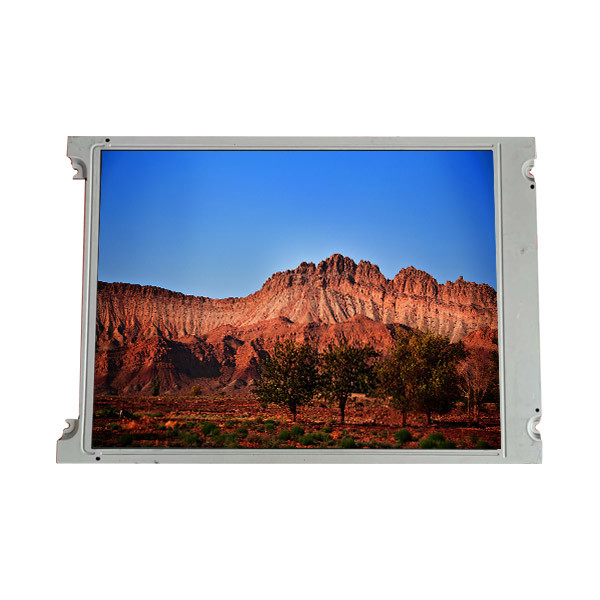

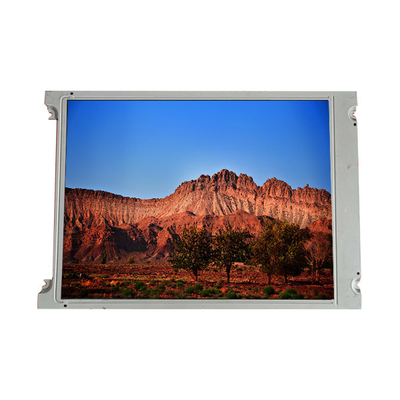

TX14D205VM0BAA 5.7 inch LCD Screen Display Panel LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX14D205VM0BAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX14D205VM0BAA | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×480, VGA 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Brightness: | 1000 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Application: | Industrial、Outdoor High Brightness | Input Voltage: | 3.3V (Typ.) |
Product Description
TX14D205VM0BAA 5.7 inch LCD Screen Display Panel LCD Module
TX14D205VM0BAA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX14D205VM0BAA |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | - |
| Outline Size | 131(W)×102.2(H)×8.1(D) mm |
| Surface | - |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K 58%NTSC |
| Lamp Type | 3S9PWLED, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 104g (Typ.) |
| Application | Industrial,Outdoor High Brightness |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| TX14D205VM0BAA 5.7 inch LCD Screen Display Panel LCD Module | |
TX14D205VM0BAA lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
TX14D205VM0BAA LCD Panel Shipping and Package :
TX14D205VM0BAA LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
TX14D205VM0BAA LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
TX14D205VM0BAA LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
