products details

Home > Products >

Industrial LCD Panel Display

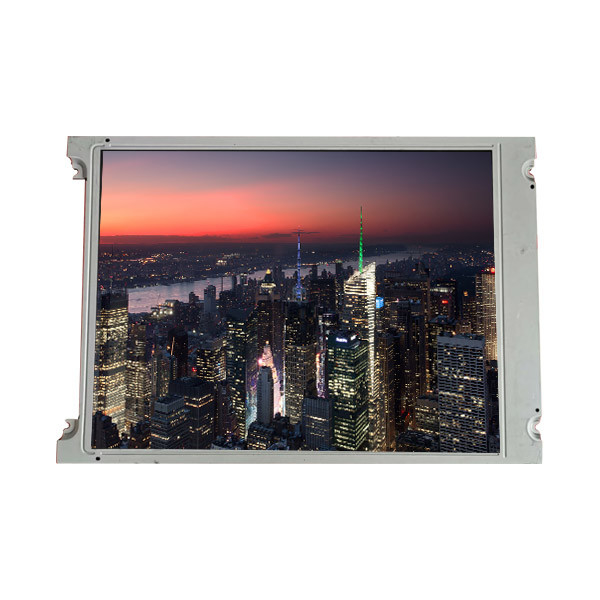

TX14D201MM2BAA 5.7 inch LCD Screen Display Panel LCD Module

All Category

Floor Standing Digital Signage

TX14D201MM2BAA 5.7 inch LCD Screen Display Panel LCD Module

Brand Name:	KOE
Model Number:	TX14D201MM2BAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX14D201MM2BAA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Brightness:

280 Cd/m² (Typ.)

Contrast Ratio:

350 : 1 (Typ.) (TM)

Application:

Industrial

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX14D201MM2BAA5.7 inch LCD Screen Display Panel LCD Module

TX14D201MM2BAA LCD Panel Product details :

Brand	KOE
Model P/N	TX14D201MM2BAA
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320×240, QVGA 70PPI
Pixel Format	Rectangle
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.2(W)×89.4(H) mm
Outline Dim.	131(H)×104.2(V)×8.1(D) mm
Treatment	-
Luminance	1500 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	35 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	Grayscale
Light Source	WLED, 55K hours, With LED Driver
Weight	120g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	8-bit 8080 parallel, 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C; Storage Temperature: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²)
TX14D201MM2BAA5.7 inch LCD Screen Display Panel LCD Module

TX14D201MM2BAA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX14D201MM2BAA LCD Panel Shipping and Package :

TX14D201MM2BAA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX14D201MM2BAA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX14D201MM2BAA LCD Panel FAQ :

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
