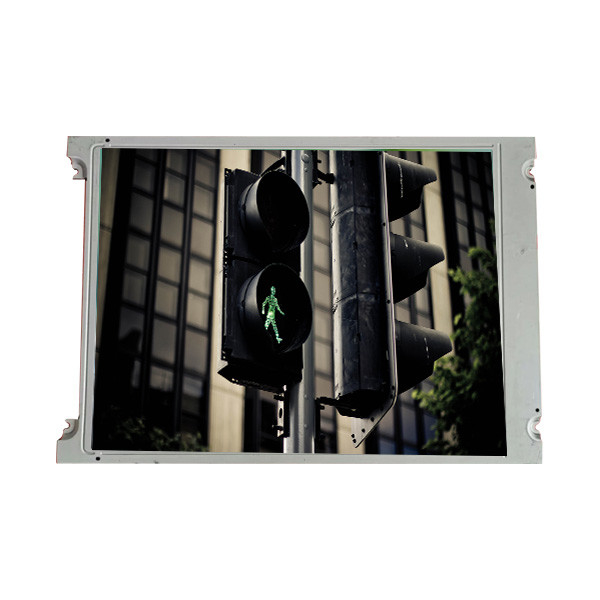

TX14D55VM1CAA 5.7 inch LCD Screen Display Panel LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX14D55VM1CAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX14D55VM1CAA | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Brightness: | 280 Cd/m² (Typ.) | Contrast Ratio: | 350 : 1 (Typ.) (TM) |
| Application: | Industrial | Input Voltage: | 3.3V (Typ.) |
Product Description
TX14D55VM1CAA 5.7 inch LCD Screen Display Panel LCD Module
TX14D55VM1CAA LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX14D55VM1CAA |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | - |
| Outline(mm) | 131 × 102.2 (H×V×D) |
| Treatment | - |
| Luminance | 280 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (TM) |
| Viewing Angle | - |
| Response | - |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 60%NTSC |
| Backlight | 1 pcsCCFL |
| Mass | 200g (Typ.) |
| Used for | Industrial |
| Refresh Rate | - |
| Touchscreen | Embeded Touch |
| Signal Type | CMOS (1 ch, 6-bit) |
| Voltage Supply | 3.3V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
| TX14D55VM1CAA 5.7 inch LCD Screen Display Panel LCD Module | |
