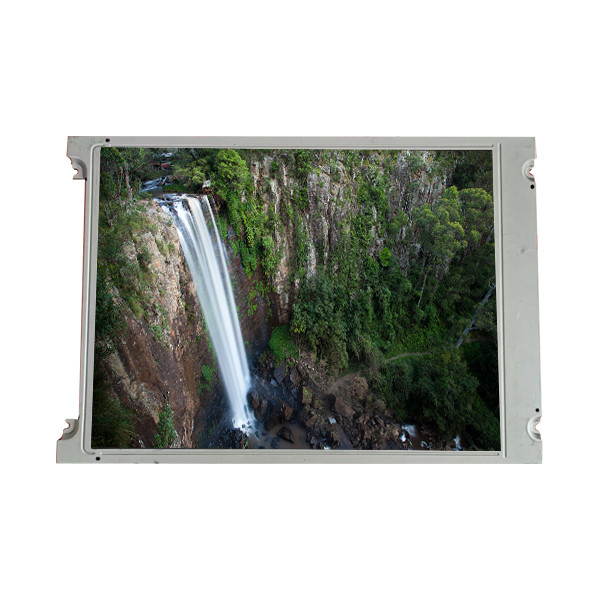

TX14D26VM1BAA 5.7 inch LCD Screen Display Panel

Brand Name:	KOE
Model Number:	TX14D26VM1BAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX14D26VM1BAA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Brightness:

800 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Application:

Industrial

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX14D26VM1BAA 5.7 inch LCD Screen Display Panel

TX14D26VM1BAA LCD Panel Product details :

Brand	KOE
Model P/N	TX14D26VM1BAA
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	119.4(W)×90.6(H) mm
Outline Dim.	131(H)×102.2(V)×7.1(D) mm
Treatment	-
Luminance	800 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 59%NTSC
Light Source	WLED [3S7P], 40K hours, W/O Driver
Weight	150g
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	CMOS (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 3.0G (29.4 m/s²)
TX14D26VM1BAA 5.7 inch LCD Screen Display Panel

TX14D26VM1BAA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX14D26VM1BAA LCD Panel Shipping and Package :

TX14D26VM1BAA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX14D26VM1BAA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX14D26VM1BAA LCD Panel FAQ :

Q: How long is the warranty of TX14D26VM1BAA ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of TX14D26VM1BAA ?

A: Of course!If you make a large order, we will give you a discount.

Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.

Q: How long will I receive my goods of TX14D26VM1BAA ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
