LCD Screen Display Panel

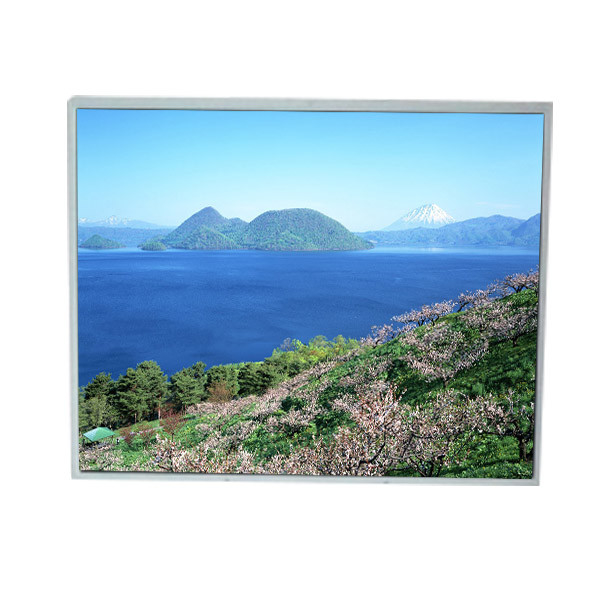

LM190E08-TLL4 19.0 inch 1280*1024 LCD Module for computer

All Category

Floor Standing Digital Signage

LM190E08-TLL4 19.0 inch 1280*1024 LCD Module for computer

Brand Name:	LG
Model Number:	LM190E08-TLL4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM190E08-TLL4

Diagonal Size:

19.0"

Resolution:

1280(RGB)×1024, SXGA 86PPI

Active Area:

376.32(W)×301.056(H) Mm

Outline(mm):

396(H)×324(V)×15.5(D) Mm

Color Depth:

16.7M 72%NTSC

Work Mode:

TN, Normally White, Transmissive

Backlight:

CCFL [4 Pcs], 50K Hours, W/O Driver

Used For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM190E08-TLL4 19.0 inch 1280*1024 LCD Module for computer

LM190E08-TLL4 LCD Panel Product details :

Brand	LG
Model P/N	LM190E08-TLL4
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI
Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	380.3(W)×305.0(H) mm
Outline Dim.	396(H)×324(V)×15.5(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle	80/80/75/85 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72%NTSC
Light Source	CCFL [4 pcs], 50K hours, W/O Driver
Weight	1.95/2.00Kgs (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LM190E08-TLL4 19.0 inch 1280*1024 LCD Module for computer

LM190E08-TLL4 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

LM190E08-TLL4 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

LM190E08-TLL4 LCD Panel Shipping and Package :

LM190E08-TLL4 LCD Panel FAQ :

Q: How to order LG lcd panel LM190E08-TLL4 ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the LM190E08-TLL4 before shipping ?

A: Of course , 19.0 inch lcd screen LM190E08-TLL4 was Strictly tested before shipping.

Q: What happen if the LM190E08-TLL4 received can't work ?

A: LM190E08-TLL4 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: How long the warranty of the LM190E08-TLL4 ?

A: 90 days .

LM190E08-TLL4 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
