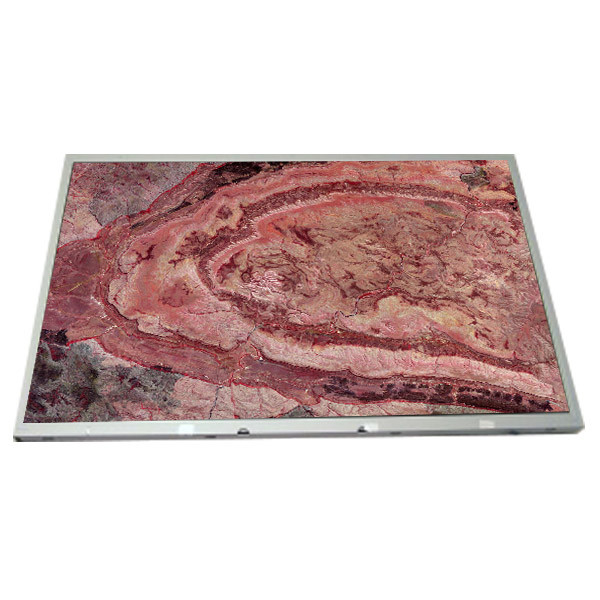

LM190E08-TLJ4 19.0 inch 1280*1024 lcd display panel for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM190E08-TLJ4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM190E08-TLJ4 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Operating Mode: | TN, Normally White, Transmissive | Support Color: | 16.7M 71%NTSC |
| Frame Rate: | 60Hz | Panel Weight: | 2.45/2.58Kgs (Typ./Max.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit), 30 Pins Connector |
Product Description
LM190E08-TLJ4 19.0 inch 1280*1024 lcd display panel for Desktop Monitor
LM190E08-TLJ4 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM190E08-TLJ4 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.3(W)×305.0(H) mm |
| Outline Size | 396(W)×324(H)×16(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 71%NTSC |
| Lamp Type | 2 pcsCCFL, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.45/2.58Kgs (Typ./Max.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LM190E08-TLJ4 19.0 inch 1280*1024 lcd display panel for Desktop Monitor | |
