Industrial LCD Panel Display

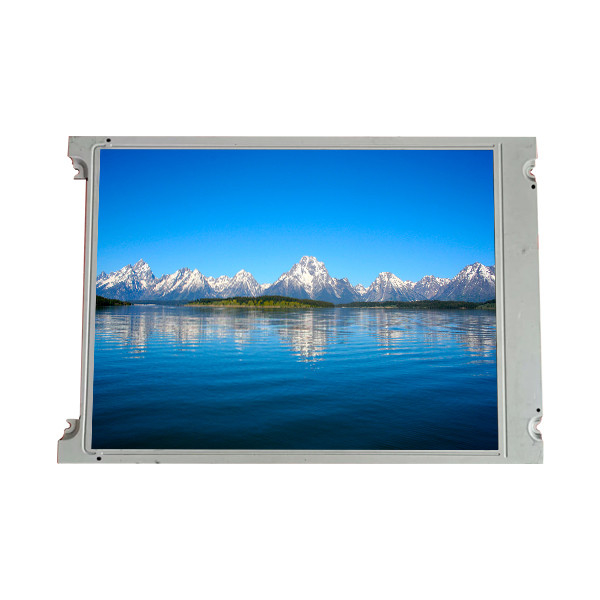

TX14D22VM1BPA 5.7 inch 320*240 LCD Screen Display For Industrial

All Category

Floor Standing Digital Signage

TX14D22VM1BPA 5.7 inch 320*240 LCD Screen Display For Industrial

Brand Name:	KOE
Model Number:	TX14D22VM1BPA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX14D22VM1BPA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Outline(mm):

115.2(W)×86.4(H) Mm

Brightness:

320 Cd/m² (Typ.)

Contrast Ratio:

350:1 (Typ.) (TM)

Application:

Industrial

Voltage Supply:

3.3V (Typ.)(VDD)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX14D22VM1BPA 5.7 inch 320*240 LCD Screen Display For Industrial

TX14D22VM1BPA LCD Panel Product details :

Brand	HITACHI
Model P/N	TX14D22VM1BPA
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	-
Outline Dim.	131(W)×102.2(H)×9.1(D) mm
Treatment	Antiglare
Luminance	320 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/60 (Typ.)(CR≥5)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 50%NTSC
Light Source	WLED [3S5P], 40K hours, W/O Driver
Weight	150g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch, F/G
Interface Type	CMOS (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)(VDD)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 3.0G (29.4 m/s²)
TX14D22VM1BPA 5.7 inch 320*240 LCD Screen Display For Industrial

TX14D22VM1BPA LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

TX14D22VM1BPA LCD Panel Shipping and Package :

TX14D22VM1BPA LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

TX14D22VM1BPA LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

TX14D22VM1BPA LCD Panel FAQ :

Q: How long will I receive my goods of lcd TX14D22VM1BPA ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order TX14D22VM1BPA ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
