LCD Screen Display Panel

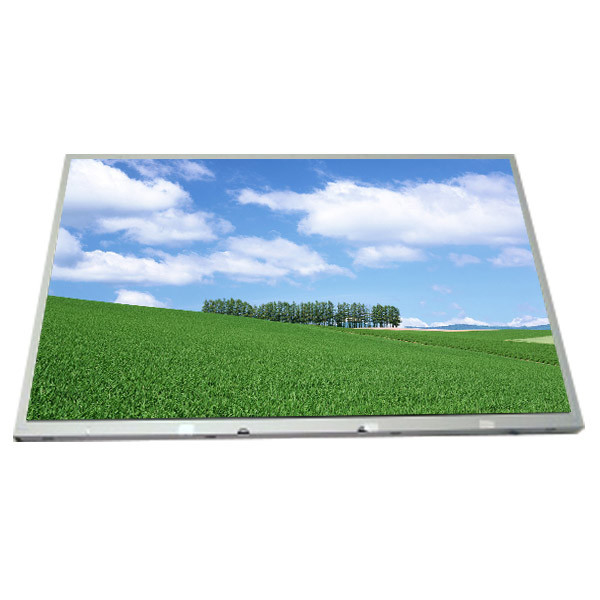

LM190E08-TLB4 19.0 inch LCD Display 1280*1024 LCD Screen

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

LM190E08-TLB4 19.0 inch LCD Display 1280*1024 LCD Screen

Brand Name:	LG Display
Model Number:	LM190E08-TLB4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM190E08-TLB4

Diagonal Size:

19.0"

Resolution:

1280(RGB)×1024, SXGA 86PPI

Active Area:

376.32(W)×301.056(H) Mm

Outline Dim.:

396(W)×324(H)×17(D) Mm

Operating Mode:

TN, Normally White, Transmissive

Support Color:

16.7M 72% NTSC

Frame Rate:

Designed For:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit)30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM190E08-TLB4 19.0 inch LCD Display 1280*1024 LCD Screen

LM190E08-TLB4 LCD Panel Product details :

Brand	LG
Model P/N	LM190E08-TLB4
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI
Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	380.3(W)×305.0(H) mm
Outline Dim.	396(W)×324(H)×17(D) mm
Luminance	300 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	80/80/75/85 (Typ.)(CR≥10)
Support Color	16.7M 72% NTSC
Weight	2.30/2.42Kgs (Typ./Max.)
Frame Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [4 pcs] , 50K hours , W/O Driver
Designed For	Desktop Monitor
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit)30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
LM190E08-TLB4 19.0 inch LCD Display 1280*1024 LCD Screen

LM190E08-TLB4 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM190E08-TLB4 LCD Panel Shipping and Package :

LM190E08-TLB4 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM190E08-TLB4 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM190E08-TLB4 LCD Panel FAQ :

Q: How long is the warranty of LM190E08-TLB4 ?

A: 90days warranty .

Q: How can I trace my order of LG LM190E08-TLB4 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LM190E08-TLB4 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods LM190E08-TLB4 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
