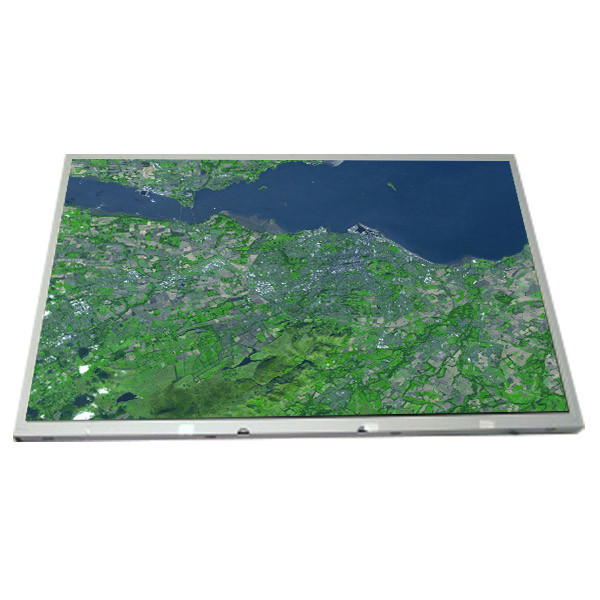

LM190E05-SL01 19.0 inch 1280*1024 LCD Screen Module for LG

Brand Name:	LG Display
Model Number:	LM190E05-SL01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM190E05-SL01

Diagonal Size:

19.0"

Resolution:

1280(RGB)×1024, SXGA 86PPI

Active Area:

376.32(W)×301.056(H) Mm

Outline(mm):

396(W)×324(H)×20.5(D)

Pixel Format:

RGB Vertical Stripe

Operating Mode:

IPS, Normally Black, Transmissive

Mass:

2.97/3.12Kgs (Typ./Max.)

Designed For:

Desktop Monitor

Signal Type:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM190E05-SL01 19.0 inch 1280*1024 LCD Screen Module for LG

LM190E05-SL01 LCD Panel Product details :

Brand	LG
Model P/N	LM190E05-SL01
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI
Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	380.3(W)×305.0(H) mm
Outline(mm)	396(W)×324(H)×20.5(D)
Luminance	250 (Typ.)(cd/m²)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	16.7M 71% NTSC
Mass	2.97/3.12Kgs (Typ./Max.)
Refresh Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	800 : 1 (Typ.) (TM)
Work Mode	IPS, Normally Black, Transmissive
Response	7/11 (Typ.)(Tr/Td), 14 (Typ.)(G to G) ms
Backlight	4 pcs CCFL , 40K hours , No Driver
Used for	Desktop Monitor
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pins Connector
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM190E05-SL01 19.0 inch 1280*1024 LCD Screen Module for LG

LM190E05-SL01 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM190E05-SL01 LCD Panel Shipping and Package :

LM190E05-SL01 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM190E05-SL01 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM190E05-SL01 LCD Panel FAQ :

Q: How long is the warranty of LM190E05-SL01 ?

A: 90days warranty .

Q: How can I trace my order of LG LM190E05-SL01 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I order LM190E05-SL01 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders for LM190E05-SL01 ?

A: Of course!sample order is welcome !
