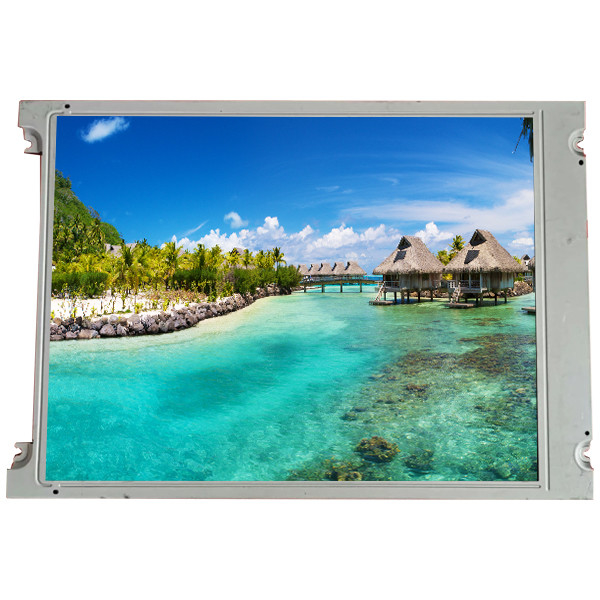

TX13D06VM5BPA 5.0 inch 800*480 LCD Screen Display For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX13D06VM5BPA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX13D06VM5BPA | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 188PPI |
| Pixel Format: | RGB Vertical Stripe | Outline(mm): | 108(W)×64.8(H) Mm |
| Brightness: | 640 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
| Display Colors: | 262K 50%NTSC | Application: | Industrial、Automotive Display |
Product Description
TX13D06VM5BPA 5.0 inch 800*480 LCD Screen Display For Industrial
TX13D06VM5BPA LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX13D06VM5BPA |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Bezel Opening | 110.0(W)×66.8(H) mm |
| Outline Size | 120(W)×80.7(H)×9.9(D) mm |
| Surface | Hard coating (3H) |
| Brightness | 640 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 500 (Typ.)(Tr+Td) |
| Display Colors | 262K 50%NTSC |
| Lamp Type | 3S6PWLED, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | 4-wire Resistive Touch |
| Panel Weight | 105g (Typ.) |
| Application | Industrial,Automotive Display |
| Signal Interface | CMOS (1 ch, 6-bit), 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²) |
| TX13D06VM5BPA 5.0 inch 800*480 LCD Screen Display For Industrial | |
TX13D06VM5BPA LCD Panel Friendly Reminder:
Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.
Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.
Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.
TX13D06VM5BPA LCD Panel Shipping and Package :
TX13D06VM5BPA LCD Panel Shipping and Delivery Information:
Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.
Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.
Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.
Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.
TX13D06VM5BPA LCD Panel Return Policy:
One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.
Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.
Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.
Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.
Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.
Thank you for your cooperation. We wish you a pleasant shopping experience!
TX13D06VM5BPA LCD Panel FAQ :
Q: Do you accept the TX13D06VM5BPA sample order?
A: Yes , sample order is welcome.
Q: Can you test the lcd panel TX13D06VM5BPA before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long is the warranty of TX13D06VM5BPA ?
A: 90DAYS.
Q: How long will I receive my goods of lcd TX13D06VM5BPA ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
