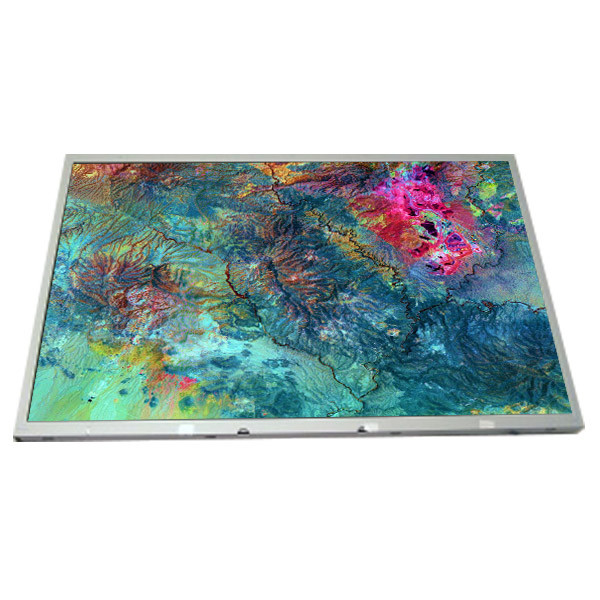

LM190E03-TLC1 19.0 inch LCD Panel 1280*1024 TFT LCD Display

Brand Name:	LG Display
Model Number:	LM190E03-TLC1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM190E03-TLC1

Diagonal Size:

19.0"

Resolution:

1280(RGB)×1024, SXGA 86PPI

Active Area:

376.32(W)×301.056(H) Mm

Outline Size:

396(W)×324(H)×17(D) Mm

Pixel Format:

RGB Vertical Stripe

Operating Mode:

TN, Normally White, Transmissive

Panel Weight:

2.70Kgs (Typ.)

Designed For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM190E03-TLC1 19.0 inch LCD Panel 1280*1024 TFT LCD Display

LM190E03-TLC1 LCD Panel Product details :

Brand	LG
Model P/N	LM190E03-TLC1
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI
Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	-
Outline Size	396(W)×324(H)×17(D) mm
Surface	Glare (Haze 0%), Hard coating (2H), Antireflection
Brightness	420 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	80/80/75/85 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	2/6 (Typ.)(Tr+Td)
Display Colors	16.2M 72%NTSC
Lamp Type	4 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.70Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
LM190E03-TLC1 19.0 inch LCD Panel 1280*1024 TFT LCD Display

LM190E03-TLC1 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM190E03-TLC1 LCD Panel Shipping and Package :

LM190E03-TLC1 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM190E03-TLC1 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM190E03-TLC1 LCD Panel FAQ :

Q: How do you ship my goods LM190E03-TLC1 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of LG LM190E03-TLC1 ?

A: 90 days warranty .

Q: How can I trace my order of LM190E03-TLC1 ?

A: we will give you tracking number then you can trace your order form website.

Q: Can you give me a discount if I need a large quantity of LM190E03-TLC1 ?

A: Of course!If you make a large order, we will give you a discount.
