TX13D04VM2CAA 5.0 inch 640*480 LCD Screen Display For Industrial

Brand Name:	KOE
Model Number:	TX13D04VM2CAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX13D04VM2CAA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 159PPI

Pixel Format:

RGB Vertical Stripe

Outline(mm):

101.76(W)×76.32(H) Mm

Brightness:

600 Cd/m² (Typ.)

Contrast Ratio:

500 : 1 (Typ.) (TM)

Display Colors:

262K 54%NTSC

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

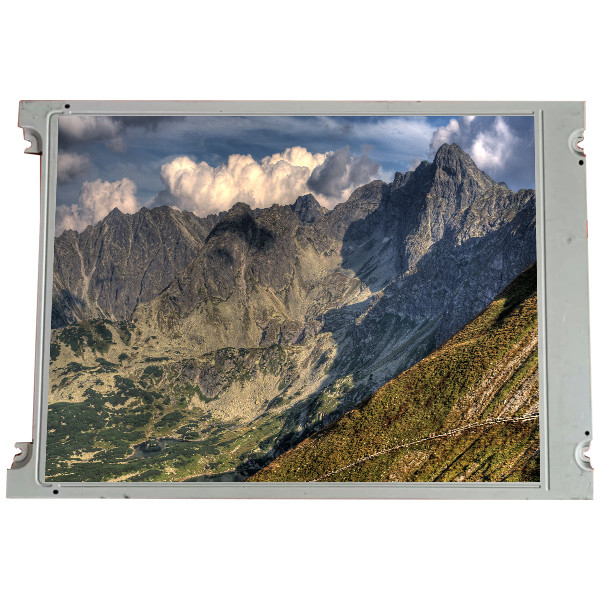

TX13D04VM2CAA 5.0 inch 640*480 LCD Screen Display For Industrial

TX13D04VM2CAA LCD Panel Product details :

Brand	HITACHI
Model P/N	TX13D04VM2CAA
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 159PPI
Pixel Format	RGB Vertical Stripe
Active Area	101.76(W)×76.32(H) mm
Bezel Opening	104.8(W)×79.36(H) mm
Outline Size	119.4(W)×89.1(H)×9.8(D) mm
Surface	Antiglare
Brightness	600 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/60/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	45 (Max.)(Tr+Td)
Display Colors	262K 54%NTSC
Lamp Type	WLED, 70K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	110g (Typ.)
Application	Industrial
Signal Interface	CMOS (1 ch, 6-bit), 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -40 ~ 90 °C; Vibration Level: 5.0G (49.0 m/s²)
