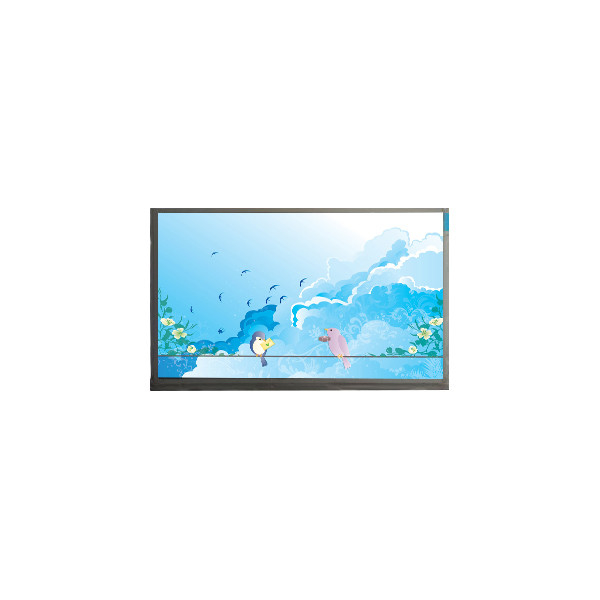

N173O6-P02 17.3 inch 1600*900 LCD Screen Display For Laptop

Brand Name:	Chimei Innolux
Model Number:	N173O6-P02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

N173O6-P02

Diagonal Size:

17.3"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

1600(RGB)×900, HD+ 106PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

382.08(W)×214.92(H) Mm

Brightness:

0 Cd/m²

Contrast Ratio:

650 : 1 (Typ.) (TM)

Display Colors:

262K 59% NTSC

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

N173O6-P02 17.3 inch 1600*900 LCD Screen Display For Laptop

N173O6-P02 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	N173O6-P02
Diagonal Size	17.3"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1600(RGB)×900, HD+ 106PPI
Pixel Format	RGB Vertical Stripe
Active Area	382.08(W)×214.92(H) mm
Bezel Opening	-
Outline Dim.	391.34(W)×222.2(H)×1.27(D)
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	650 : 1 (Typ.) (TM)
View Direction	-
Response Time	2/6 (Typ.)(Tr/Td) ms
Viewing Angle	45/45/20/45 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Glass Depth	0.50+0.50 mm
Transmissivity	6.6% (Typ.)(with Polarizer)
Support Color	262K 59% NTSC
Light Source	No B/L , With LED Driver
Shape Style	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	Built-in 6 source COF + 3 gate COG chips
Signal Type	LVDS (2 ch, 6-bit) , 40 pins Connector
Voltage Supply	3.3V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

N173O6-P02 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

N173O6-P02 LCD Panel Shipping and Package :

N173O6-P02 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

N173O6-P02 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

N173O6-P02 LCD Panel FAQ :

Q: How do you ship my goods N173O6-P02 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of N173O6-P02 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel N173O6-P02 at a very low value ?

A: Yes , we can . pls inform us before shipping .
