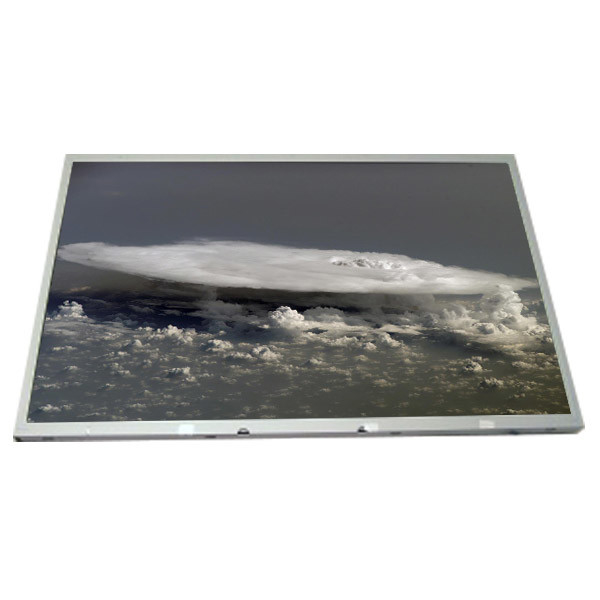

LM190E03-B4 Original 19.0 inch 1280*1024 LCD Display Screen

Brand Name:	LG Display
Model Number:	LM190E03-B4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM190E03-B4

Diagonal Size:

19.0"

Resolution:

1280(RGB)×1024, SXGA 86PPI

Active Area:

376.32(W)×301.056(H) Mm

Work Mode:

TN, Normally White, Transmissive

Support Color:

16.2M 72%NTSC

Pixel Format:

RGB Vertical Stripe

Designed For:

Desktop Monitor

Weight:

2.50Kgs (Typ.)

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM190E03-B4 Original 19.0 inch 1280*1024 LCD Display Screen

LM190E03-B4 LCD Panel Product details :

Brand	LG
Model P/N	LM190E03-B4
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI
Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	380.3(W)×305.0(H) mm
Outline Dim.	404.2(H)×330(V)×20.5(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	2/10 (Typ.)(Tr/Td)
Viewing Angle	70/70/75/65 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.2M 72%NTSC
Light Source	CCFL [4 pcs], 50K hours, W/O Driver
Weight	2.50Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
LM190E03-B4 Original 19.0 inch 1280*1024 LCD Display Screen

LM190E03-B4 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM190E03-B4 LCD Panel Shipping and Package :

LM190E03-B4 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM190E03-B4 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM190E03-B4 LCD Panel FAQ :

Q: How can I trace my order of LM190E03-B4 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long will I receive my goods LM190E03-B4 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of LM190E03-B4 ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of LM190E03-B4 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
