LCD Screen Display Panel

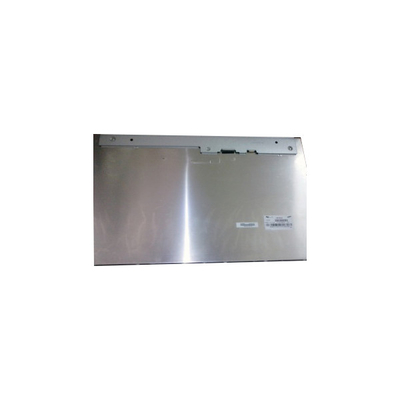

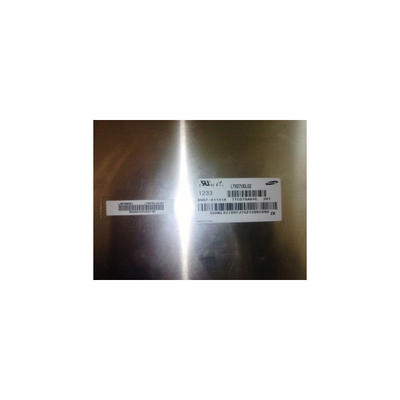

LTM270DL02-201 27.0 inch 2560*1440 LCD Screen Display For Desktop Monitor

All Category

Floor Standing Digital Signage

LTM270DL02-201 27.0 inch 2560*1440 LCD Screen Display For Desktop Monitor

Brand Name:	Samsung
Model Number:	LTM270DL02-201
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LTM270DL02-201

Diagonal Size:

27.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×1440, Quad-HD 108PPI

Pixel Format:

RGB Vertical Stripe

Outline(mm):

596.736(W)×335.664(H) Mm

Brightness:

300 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Display Colors:

16.7M 98%sRGB

Application:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

LTM270DL02-201 27.0 inch 2560*1440 LCD Screen Display For Desktop Monitor

LTM270DL02-201 LCD Panel Product details :

Brand	Samsung
Model P/N	LTM270DL02-201
Diagonal Size	27.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 108PPI
Pixel Format	RGB Vertical Stripe
Active Area	596.736(W)×335.664(H) mm
Bezel Opening	601.7(W)×340.7(H) mm
Outline Size	630(W)×368.2(H)×18.2(D) mm
Surface	Antiglare (Haze 42%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	PLS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	12 (Typ.)(G to G)
Display Colors	16.7M 98%sRGB
Lamp Type	16S4PWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	3.45Kgs (Max.)
Application	Desktop Monitor
Signal Interface	LVDS (4 ch, 8-bit), 61 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

LTM270DL02-201 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

LTM270DL02-201 LCD Panel Shipping and Package :

LTM270DL02-201 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

LTM270DL02-201 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

LTM270DL02-201 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods LTM270DL02-201 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity LTM270DL02-201 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods LTM270DL02-201 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment LTM270DL02-201 ?

A: We accept T/T , Paypal , western union .
