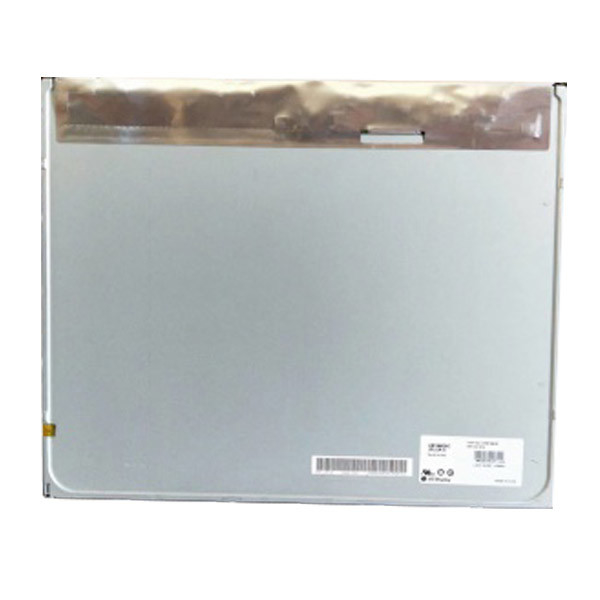

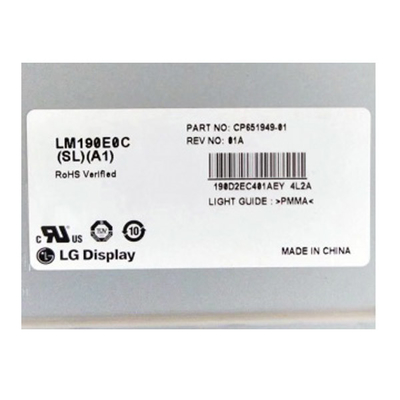

LM190E0C-SLA1 19.0 inch 1280*1024 LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM190E0C-SLA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM190E0C-SLA1 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Work Mode: | AH-IPS, Normally Black, Transmissive | Display Colors: | 16.7M 72%NTSC |
| Pixel Format: | RGB Vertical Stripe | Designed For: | Desktop Monitor |
| Frame Rate: | 60Hz | Interface Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
Product Description
LM190E0C-SLA1 19.0 inch 1280*1024 LCD Display Module
LM190E0C-SLA1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM190E0C-SLA1 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.3(W)×305.0(H) mm |
| Outline Dim. | 396(H)×324(V)×10.4(D)mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AH-IPS, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [15S2P], 30K hours, W/O Driver |
| Weight | 1.70Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM190E0C-SLA1 19.0 inch 1280*1024 LCD Display Module | |
