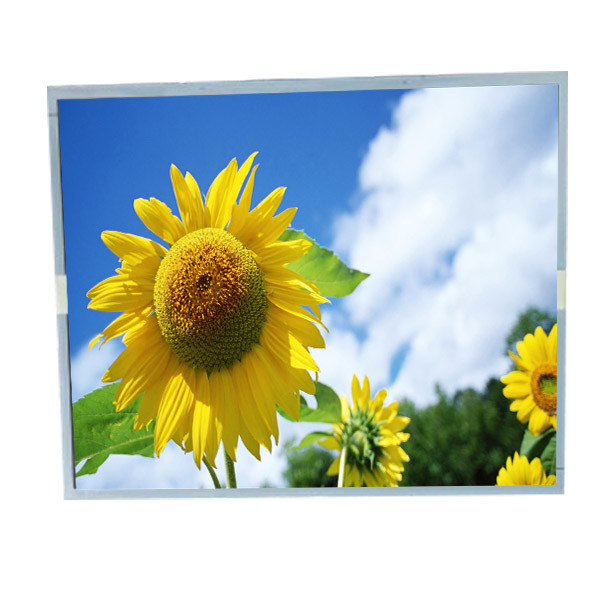

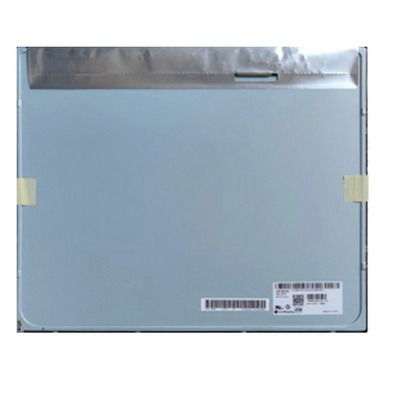

LM190E0A-SLE1 19.0 inch 1280*1024 Industrial LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM190E0A-SLE1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM190E0A-SLE1 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Work Mode: | IPS, Normally Black, Transmissive | Display Colors: | 16.7M 72%NTSC |
| Pixel Format: | RGB Vertical Stripe | Designed For: | Desktop Monitor、Industrial |
| Frame Rate: | 60Hz | Interface Type: | LVDS (2 Ch, 8-bit), 30 Pins Connector |
Product Description
LM190E0A-SLE1 19.0 inch 1280*1024 Industrial LCD Display Panel
LM190E0A-SLE1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM190E0A-SLE1 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 378.8(W)×303.0(H) mm |
| Outline Size | 396(W)×324(H)×10.4(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 19S2PWLED, 30K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.46/1.54Kgs (Typ./Max.) |
| Application | Desktop Monitor,Industrial |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LM190E0A-SLE1 19.0 inch 1280*1024 Industrial LCD Display Panel | |
LM190E0A-SLE1 lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
LM190E0A-SLE1 LCD Panel Shipping and Package :
LM190E0A-SLE1 LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
LM190E0A-SLE1 LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
LM190E0A-SLE1 LCD Panel FAQ :
Q: How long is the warranty of LM190E0A-SLE1 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LM190E0A-SLE1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LM190E0A-SLE1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LM190E0A-SLE1 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
