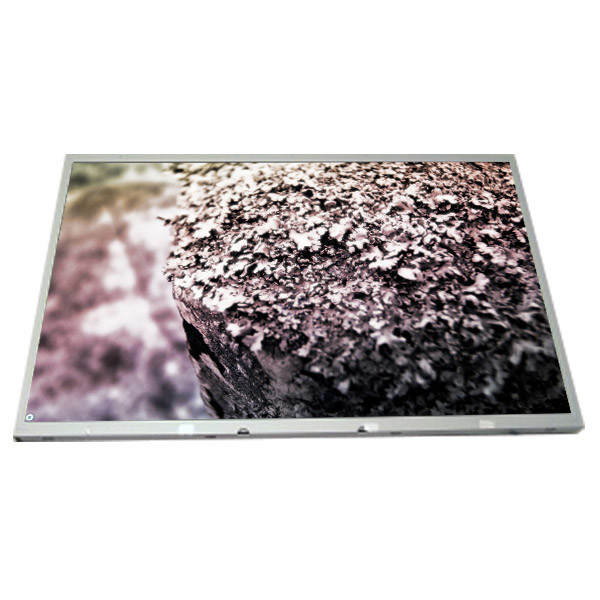

LM190E0A-SLD5 19.0 inch 1280*1024 lcd display panel for Desktop Monitor

Brand Name:	LG Display
Model Number:	LM190E0A-SLD5
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM190E0A-SLD5

Diagonal Size:

19.0"

Resolution:

1280(RGB)×1024, SXGA 86PPI

Active Area:

376.32(W)×301.056(H) Mm

Work Mode:

IPS, Normally Black, Transmissive

Display Colors:

16.7M 72%NTSC

Pixel Format:

RGB Vertical Stripe

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM190E0A-SLD5 19.0 inch 1280*1024 lcd display panel for Desktop Monitor

LM190E0A-SLD5 LCD Panel Product details :

Brand	LG Display
Model P/N	LM190E0A-SLD5
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI
Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	378.8(W)×303.0(H) mm
Outline Size	396(W)×324(H)×10.4(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	14 (Typ.)(G to G)
Display Colors	16.7M 72%NTSC
Lamp Type	19S2PWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.46/1.54Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
LM190E0A-SLD5 19.0 inch 1280*1024 lcd display panel for Desktop Monitor

LM190E0A-SLD5 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM190E0A-SLD5 LCD Panel Shipping and Package :

LM190E0A-SLD5 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM190E0A-SLD5 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM190E0A-SLD5 LCD Panel FAQ :

Q: How to order lcd LM190E0A-SLD5 ?

A: We accept the T/T , WESTERN UNION , PAYPAL

Q: Do you accept the sample order LG LM190E0A-SLD5 ?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you test the lcd panel LM190E0A-SLD5 before shipping ?

A: Yes , Of course , our all the lcd panels are tested ok before shipping , don't worry .
