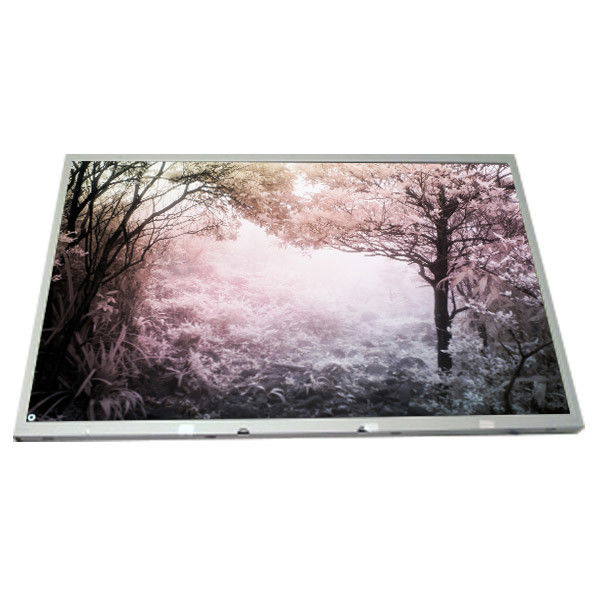

LM185WH1-TLH3 18.5 inch 1366*768 LCD Screen Panel

Brand Name:	LG Display
Model Number:	LM185WH1-TLH3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM185WH1-TLH3

Diagonal Size:

18.5"

Resolution:

1366(RGB)×768, WXGA 84PPI

Active Area:

409.8(W)×230.4(H) Mm

Work Mode:

TN, Normally White, Transmissive

Display Colors:

16.7M 60%NTSC

Pixel Format:

RGB Vertical Stripe

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (1 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM185WH1-TLH3 18.5 inch 1366*768 LCD Screen Panel

LM185WH1-TLH3 LCD Panel Product details :

Brand	LG Display
Model P/N	LM185WH1-TLH3
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	413.4(W)×234.0(H) mm
Outline Size	430.4(W)×254.6(H)×13.5(D) mm
Brightness	200 cd/m² (Typ.)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	16.7M 60%NTSC
Frequency	60Hz
Weight	1.37/1.44Kgs (Typ./Max.)
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	600:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	1.1/3.9 (Typ.)(Tr/Td)
Lamp Type	2 pcs CCFL , 50K hours , Without Driver
Touch Screen	Without
Application	Desktop Monitor
Signal Interface	LVDS (1 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM185WH1-TLH3 18.5 inch 1366*768 LCD Screen Panel

LM185WH1-TLH3 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM185WH1-TLH3 LCD Panel Shipping and Package :

LM185WH1-TLH3 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM185WH1-TLH3 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM185WH1-TLH3 LCD Panel FAQ :

Q: How long is the warranty of LM185WH1-TLH3 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LM185WH1-TLH3 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LM185WH1-TLH3 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LM185WH1-TLH3 by credit card ?

A: Yes!you can use your credit card through your Paypal account.
