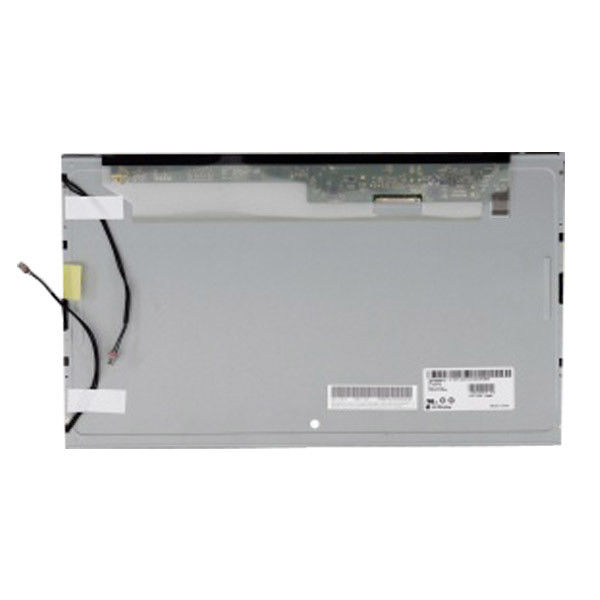

LM185WH1-TLH1 18.5 inch LCD Screen Panel for Desktop Monitor

Brand Name:	LG Display
Model Number:	LM185WH1-TLH1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM185WH1-TLH1

Diagonal Size:

18.5"

Resolution:

1366(RGB)×768, WXGA 84PPI

Active Area:

409.8(W)×230.4(H) Mm

Work Mode:

TN, Normally White, Transmissive

Display Colors:

16.7M 60%NTSC

Pixel Format:

RGB Vertical Stripe

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (1 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM185WH1-TLH1 18.5 inch LCD Screen Panel for Desktop Monitor

LM185WH1-TLH1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM185WH1-TLH1
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	413.4(W)×234.0(H) mm
Outline Dim.	430.4(H)×254.6(V)×13.5(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.1/3.9 (Typ.)(Tr/Td)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 60%NTSC
Light Source	CCFL [2 pcs], 50K hours, W/O Driver
Weight	1.37/1.44Kgs (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
LM185WH1-TLH1 18.5 inch LCD Screen Panel for Desktop Monitor

LM185WH1-TLH1 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM185WH1-TLH1 LCD Panel Shipping and Package :

LM185WH1-TLH1 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM185WH1-TLH1 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM185WH1-TLH1 LCD Panel FAQ :

Q: How long will I receive my goods LM185WH1-TLH1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of LM185WH1-TLH1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of LM185WH1-TLH1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of LM185WH1-TLH1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
