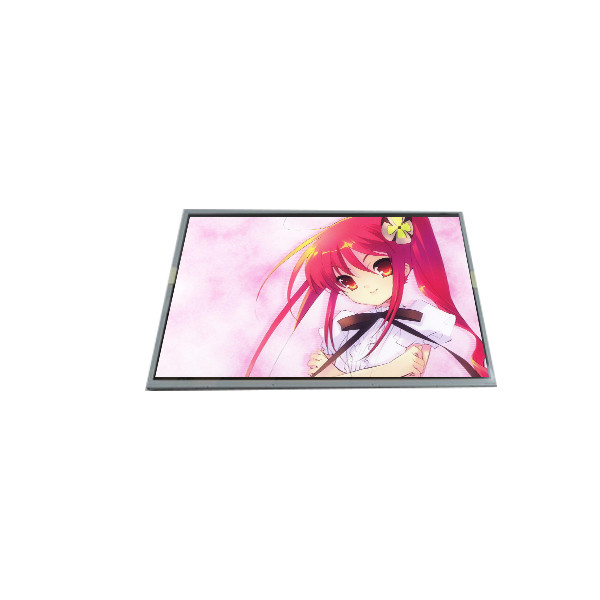

LM230WF9-SSC1 23.0 inch 1920*1080 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF9-SSC1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM230WF9-SSC1 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format: | RGB Vertical Stripe | Outline(mm): | 509.184(W)×286.416(H) Mm |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Display Colors: | 16.7M 72%NTSC | Application: | Desktop Monitor |
Product Description
LM230WF9-SSC1 23.0 inch 1920*1080 LCD Screen Display Panel
LM230WF9-SSC1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM230WF9-SSC1 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | - |
| Outline Size | 516.984(W)×302.708(H)×14.2(D) mm |
| Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 14S4PWLED, 30K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.79/1.88Kgs (Typ./Max.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
