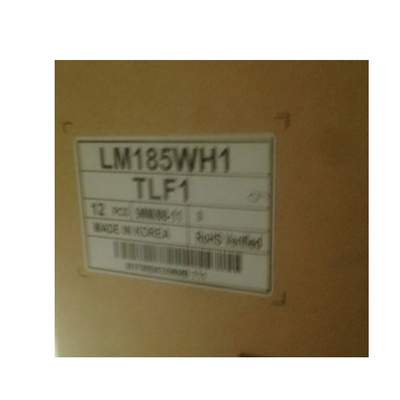

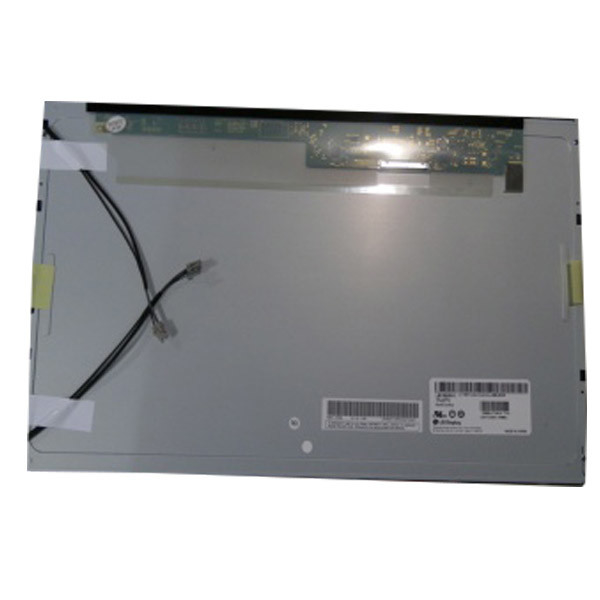

LM185WH1-TLF1 18.5 inch LCD Panel 1366*768 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM185WH1-TLF1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM185WH1-TLF1 | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 84PPI | Active Area: | 409.8(W)×230.4(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Display Colors: | 16.7M 72%NTSC |
| Pixel Format: | RGB Vertical Stripe | Designed For: | Desktop Monitor |
| Frame Rate: | 60Hz | Interface Type: | LVDS (1 Ch, 8-bit), 30 PinsConnector |
Product Description
LM185WH1-TLF1 18.5 inch LCD Panel 1366*768 LCD Screen
LM185WH1-TLF1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM185WH1-TLF1 |
| Diagonal Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline Size | 430.4(W)×254.6(H)×13.5(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 1.37/1.44Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 1.1/3.9 (Typ.)(Tr/Td) |
| Lamp Type | 2 pcs CCFL , 50K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LM185WH1-TLF1 18.5 inch LCD Panel 1366*768 LCD Screen | |
LM185WH1-TLF1 lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
LM185WH1-TLF1 LCD Panel Shipping and Package :
LM185WH1-TLF1 LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
LM185WH1-TLF1 LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
LM185WH1-TLF1 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LM185WH1-TLF1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LM185WH1-TLF1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LM185WH1-TLF1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LM185WH1-TLF1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
