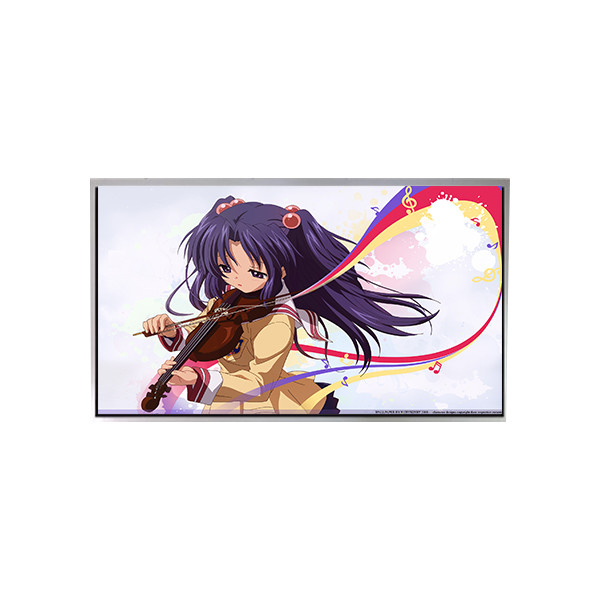

TM101JVKP01-00 10.1 inch 1280*720 LCD Screen Display

All Category

Floor Standing Digital Signage

TM101JVKP01-00 10.1 inch 1280*720 LCD Screen Display

Brand Name:	TIANMA
Model Number:	TM101JVKP01-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

TM101JVKP01-00

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1280(RGB)×720, WXGA 145PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

223.68(W)×125.82(H) Mm

Brightness:

650 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Display Colors:

16.7M 73% NTSC

Application:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

TM101JVKP01-00 10.1 inch 1280*720 LCD Screen Display

TM101JVKP01-00 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM101JVKP01-00
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1280(RGB)×720, WXGA 145PPI
Pixel Format	RGB Vertical Stripe
Active Area	223.68(W)×125.82(H) mm
Bezel Opening	-
Outline Dim.	243.1(W)×148.1(H) ×13.4(D) mm
Treatment	Anti Fingerprint + Antiglare, Hard coating (2H),Reflection 4.5% (Max.)
Luminance	650 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	35 (Max.)(Tr+Td)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Support Color	16.7M 73% NTSC
Light Source	WLED [7S3P] , 10K hours , W/O Driver
Weight	540±54g
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	PCAP
Interface Type	LVDS (2 ch, 8-bit) , 40 pins FPC
Power Supply	3.3/6.0/-6.0/14/-10V (Typ.)(VDD/VDDP/VDDN/VGH/VGL)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C

TM101JVKP01-00 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

TM101JVKP01-00 LCD Panel Shipping and Package :

TM101JVKP01-00 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

TM101JVKP01-00 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

TM101JVKP01-00 LCD Panel FAQ :

Q: Can you tested the TM101JVKP01-00 before shipping ?

A: Of course , our lcd panel TM101JVKP01-00 was Strictly tested before shipping.

Q: How to order TM101JVKP01-00 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel TM101JVKP01-00 received can't work ?

A: TM101JVKP01-00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
