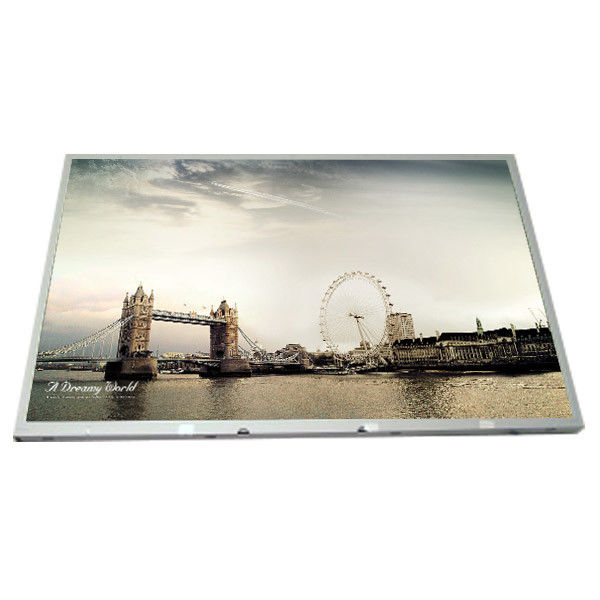

LM185WH1-TLE3 18.5 inch LCD Panel 1366*768 LCD Module

Brand Name:	LG Display
Model Number:	LM185WH1-TLE3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM185WH1-TLE3

Diagonal Size:

18.5"

Resolution:

1366(RGB)×768, WXGA 84PPI

Active Area:

409.8(W)×230.4(H) Mm

Work Mode:

TN, Normally White, Transmissive

Display Colors:

16.7M 60% NTSC

Pixel Format:

RGB Vertical Stripe

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (1 Ch, 8-bit), 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM185WH1-TLE3 18.5 inch LCD Panel 1366*768 LCD Module

LM185WH1-TLE3 LCD Panel Product details :

Brand	LG Display
Model P/N	LM185WH1-TLE3
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	413.4(W)×234.0(H) mm
Outline(mm)	430.4(W)×254.6(H)×13.5(D)
Luminance	200 (Typ.)(cd/m²)
Viewing Angle	45/45/20/40 (Typ.)(CR≥10)
Good View at	6 o'clock
Color Depth	16.7M 60% NTSC
Mass	1.55Kgs
Refresh Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	600 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	5 (Typ.)(Tr+Td) ms
Backlight	2 pcs CCFL , 35K hours , No Driver
Used for	Desktop Monitor
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
