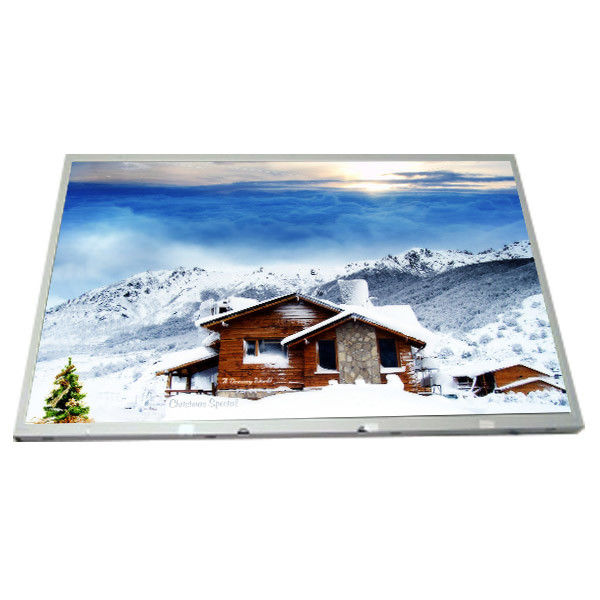

LM185WH1-TLDA 18.5 inch 1366*768 LCD Screen Module For LG
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM185WH1-TLDA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM185WH1-TLDA | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 84PPI | Active Area: | 409.8(W)×230.4(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Display Colors: | 16.7M |
| Pixel Format: | RGB Vertical Stripe | Designed For: | Desktop Monitor |
| Frame Rate: | 60Hz | Interface Type: | LVDS (2 Ch, 8-bit) |
Product Description
LM185WH1-TLDA 18.5 inch 1366*768 LCD Screen Module For LG
LM185WH1-TLDA LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM185WH1-TLDA |
| Diagonal Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | - |
| View Direction | - |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M |
| Light Source | |
| Weight | - |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | - |
| Interface Type | LVDS (2 ch, 8-bit) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM185WH1-TLDA 18.5 inch 1366*768 LCD Screen Module For LG | |
LM185WH1-TLDA lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
LM185WH1-TLDA LCD Panel Shipping and Package :
LM185WH1-TLDA LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
LM185WH1-TLDA LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
LM185WH1-TLDA LCD Panel FAQ :
Q: When would you ship,IF I order LM185WH1-TLDA?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order LG LM185WH1-TLDA ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: Can you test 18.5 inch lcd panel LM185WH1-TLDA before shipping?
A: Don't Worry , The LM185WH1-TLDA will be tested ok before shipping
Q: What happen if LG LM185WH1-TLDA received can't work ?
A: Our LG LM185WH1-TLDA was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
