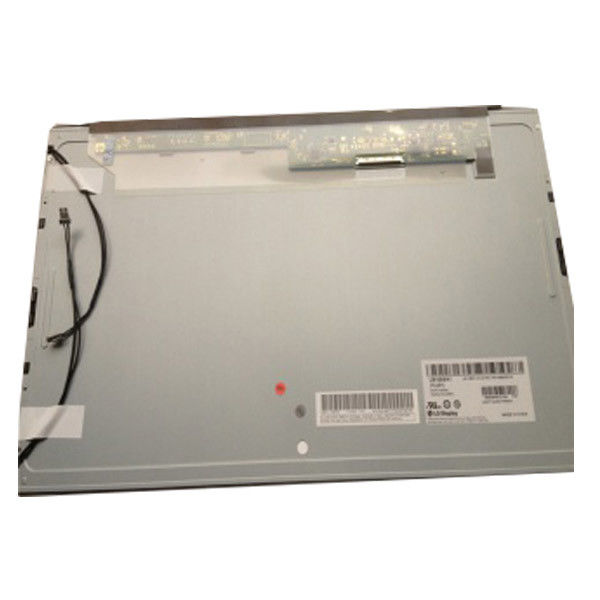

LM185WH1-TLD1 New 18.5 inch 1366*768 LCD Panel Display

Brand Name:	LG Display
Model Number:	LM185WH1-TLD1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM185WH1-TLD1

Diagonal Size:

18.5"

Resolution:

1366(RGB)×768, WXGA 84PPI

Active Area:

409.8(W)×230.4(H) Mm

Work Mode:

TN, Normally White, Transmissive

Display Colors:

16.7M 72%NTSC

Pixel Format:

RGB Vertical Stripe

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (2 Ch, 8-bit)Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM185WH1-TLD1 New 18.5 inch 1366*768 LCD Panel Display

LM185WH1-TLD1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM185WH1-TLD1
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	-
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	-
Response Time	5 (Typ.)(Tr+Td)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72%NTSC
Light Source	CCFL
Weight	-
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit)Connector
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LM185WH1-TLD1 New 18.5 inch 1366*768 LCD Panel Display

LM185WH1-TLD1 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM185WH1-TLD1 LCD Panel Shipping and Package :

LM185WH1-TLD1 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM185WH1-TLD1 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM185WH1-TLD1 LCD Panel FAQ :

Q: How to order LG lcd panel LM185WH1-TLD1 ?

A: We accept the T/T , Western union , paypal .

Q: How long the warranty of LM185WH1-TLD1 ?

A: 90days.

Q: What happen if the LM185WH1-TLD1 I received can't work ?

A: Our LG LM185WH1-TLD1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Can you declared low price of my 18.5 inch TFT-LCD LM185WH1-TLD1 when shipping?

A: Yes , please inform us the value you want .
