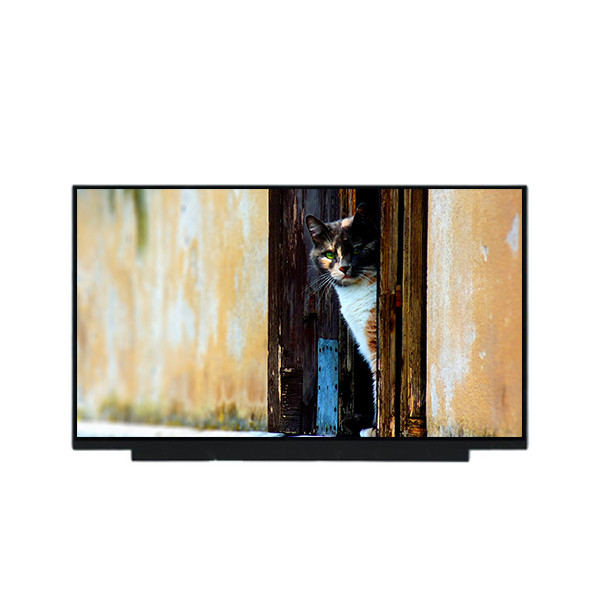

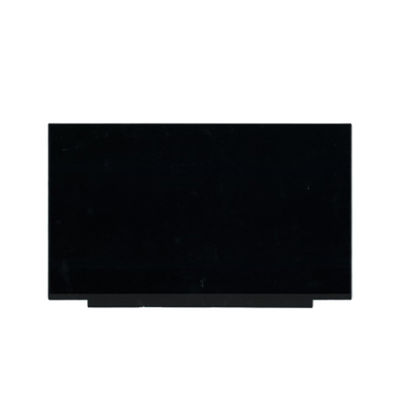

QT156WHM-N50 15.6 inch 1366*768 LCD Screen Display Panel

Brand Name:	BOE
Model Number:	QT156WHM-N50
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

QT156WHM-N50

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Outline(mm):

344.232(W)×193.536(H) Mm

Brightness:

200 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Display Colors:

262K 45%NTSC

Application:

Laptop、Printer、Home Appliance

Supply Ability:

100000 Unit/Units per Month

Product Description

QT156WHM-N50 15.6 inch 1366*768 LCD Screen Display Panel

QT156WHM-N50 LCD Panel Product details :

Brand	BOE
Model P/N	QT156WHM-N50
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	-
Brightness	200 cd/m² (Typ.)
Viewing Angle	45/45/20/40 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K 45%NTSC
Frequency	60Hz
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	12 (Typ.)(Tr+Td)
Lamp Type	WLED , 15K hours , With LED Driver
Touch Screen	Without
Application	Laptop,Printer,Home Appliance
Signal Interface	LVDS (1 ch, 6-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

QT156WHM-N50 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

QT156WHM-N50 LCD Panel Shipping and Package :

QT156WHM-N50 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

QT156WHM-N50 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

QT156WHM-N50 LCD Panel FAQ :

Q: Can I pay my order of QT156WHM-N50 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of QT156WHM-N50 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Do you accept sample orders of QT156WHM-N50 ?

A: Of course!sample order is welcome !
