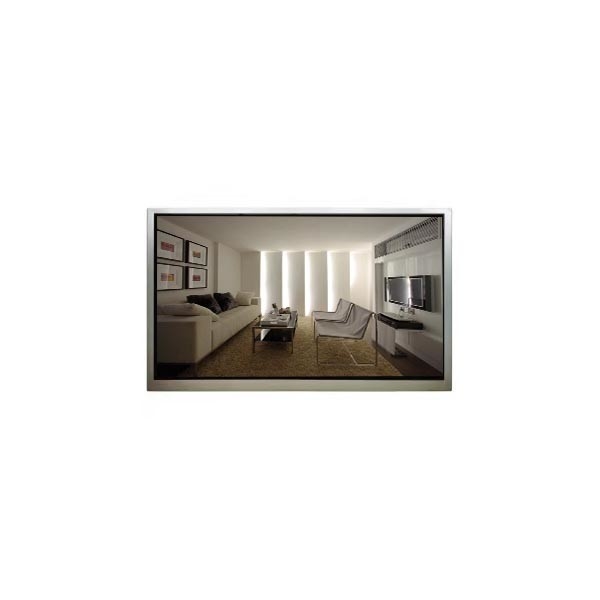

CM6264LA1-1 6.3 inch 720*1520 LCD Screen Display Panel

Brand Name:	CSOT
Model Number:	CM6264LA1-1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

CM6264LA1-1

Diagonal Size:

Panel Type:

LTPS TFT-LCD, CELL, Full Cell

Resolution:

720(RGB)×1520 268PPI

Pixel Format:

RGB Vertical Stripe

Outline(mm):

68.04(W)×143.64(H) Mm

Brightness:

0 Cd/m²

Contrast Ratio:

1500:1 (Typ.) (TM)

Display Colors:

16.7M 84%NTSC

Application:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

CM6264LA1-1 6.3 inch 720*1520 LCD Screen Display Panel

CM6264LA1-1 LCD Panel Product details :

Brand	CSOT
Model P/N	CM6264LA1-1
Diagonal Size	6.3"
Panel Type	LTPS TFT-LCD, CELL, Full Cell
Resolution	720(RGB)×1520 268PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×143.64(H) mm
Bezel Opening	-
Outline Dim.	69.84(W)×148.54(H)×0.49(D) mm
Treatment	With Polarizer
Luminance	0 cd/m²
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	FFS, Normally Black, Transmissive
Plate Thickness	0.15+0.15 mm
Transmittance	4.6% (Typ.)(with Polarizer)
Support Color	16.7M 84%NTSC
Light Source	No B/L
Weight	TBD
Designed For	Mobile Phone
Frame Rate	-
Touch Panel	Without
D-IC Detail	COG Suggest OTM190A, ILI7807D, HX8399C
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

CM6264LA1-1 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.

CM6264LA1-1 LCD Panel Shipping and Package :

CM6264LA1-1 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

CM6264LA1-1 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

CM6264LA1-1 LCD Panel FAQ :

Q: How long is the warranty of CM6264LA1-1 ?

A: 90days warranty .

Q: How can I trace my order of CM6264LA1-1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods CM6264LA1-1 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders for CM6264LA1-1 ?

A: Of course!sample order is welcome !
