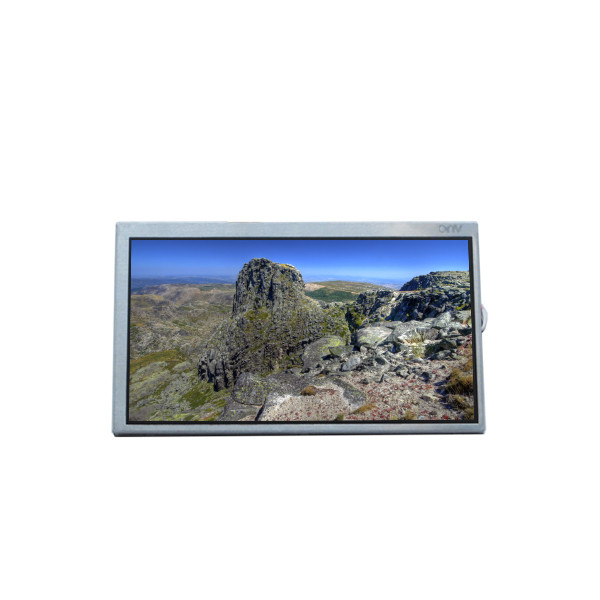

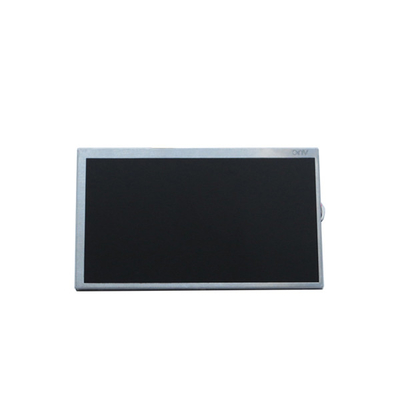

B090VTN01.0 9.0 inch 800*480 LCD Screen Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B090VTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B090VTN01.0 | Diagonal Size: | 9.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 800(RGB)×480, WVGA 104PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 198(W)×111.696(H) Mm |
| Brightness: | 0 Cd/m² | Transmissivity: | 6.35% (Typ.)(with Polarizer) |
| Display Colors: | 16.7M 60%NTSC | Application: | Digital Photo Frame、Portable DVD Player |
Product Description
B090VTN01.0 9.0 inch 800*480 LCD Screen Display Module
B090VTN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B090VTN01.0 |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 800(RGB)×480, WVGA 104PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 198(W)×111.696(H) mm |
| Bezel Opening | - |
| Outline Size | 206.7(W)×122(H)×0.8(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | - |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 6.35% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 60%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Suggest ILI6128B2 + ILI5960, HX8264-D + HX8664-B, EK9716 + EK73002A |
| Panel Weight | - |
| Application | Digital Photo Frame,Portable DVD Player |
| Signal Interface | TTL |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
B090VTN01.0 LCD Panel Shipping and Package :
We are excited to offer the B090VTN01.0 LCD screens for purchase! While they may be categorized as used items, this presents an opportunity for a more budget-friendly option for those seeking top-quality displays. We want to assure our customers that we have taken great care in testing each screen to ensure its functionality and performance meet our high quality standards.
We are confident that our customers will be satisfied with their purchase and the value it brings to their projects. Thank you for considering our selection of LCD screens.
Q: Can I pay my order of B090VTN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of B090VTN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B090VTN01.0 ?
A: Of course!sample order is welcome !
Q: How can I trace my order of B090VTN01.0 ?
A: we will give you tracking number then you can trace your order from website.
