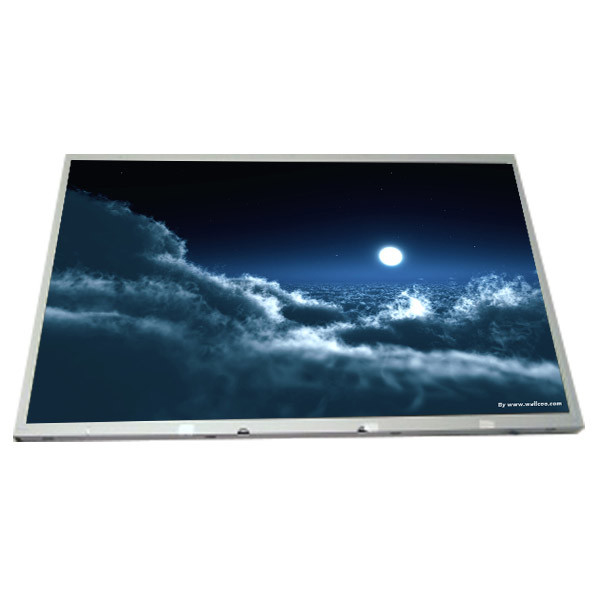

LM185WH1-TLA7 18.5 inch LCD Panel 1366*768 LCD Display

Brand Name:	LG Display
Model Number:	LM185WH1-TLA7
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM185WH1-TLA7

Diagonal Size:

18.5"

Resolution:

1366(RGB)×768, WXGA 84PPI

Active Area:

409.8(W)×230.4(H) Mm

Outline(mm):

430.4 × 254.6× 13.5 (H×V×D)

Display Colors:

16.7M 72%NTSC

Pixel Format:

RGB Vertical Stripe

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM185WH1-TLA7 18.5 inch LCD Panel 1366*768 LCD Display

LM185WH1-TLA7 LCD Panel Product details :

Brand	LG Display
Model P/N	LM185WH1-TLA7
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	413.4(W)×234.0(H) mm
Outline(mm)	430.4 × 254.6× 13.5 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Response	1.1/3.9 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	2 pcsCCFL, 50K hours, No Driver
Mass	1.55/1.65Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM185WH1-TLA7 18.5 inch LCD Panel 1366*768 LCD Display

LM185WH1-TLA7 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM185WH1-TLA7 LCD Panel Shipping and Package :

LM185WH1-TLA7 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM185WH1-TLA7 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM185WH1-TLA7 LCD Panel FAQ :

Q: When will my order 18.5 inch lcd panel LM185WH1-TLA7 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 18.5 inch lcd panel LM185WH1-TLA7 before shipping?

A: Don't Worry , The LM185WH1-TLA7 was tested ok before shipping.

Q: What happen if LM185WH1-TLA7 I received can't work ?

A: The LM185WH1-TLA7 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
