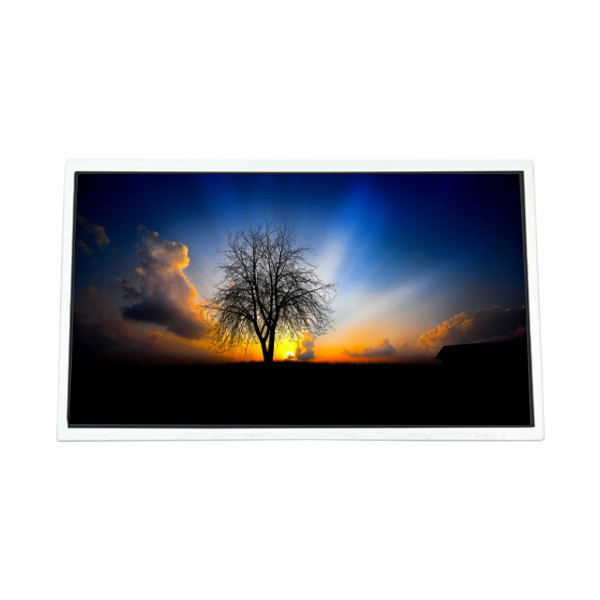

MV230FHM-N30 23.0 inch 1920*1080 LCD Screen Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV230FHM-N30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV230FHM-N30 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 509.184(W)×286.416(H) Mm |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Min.) (TM) |
| Display Colors: | 16.7M 75%NTSC | Application: | Desktop Monitor |
Product Description
MV230FHM-N30 23.0 inch 1920*1080 LCD Screen Display Module
MV230FHM-N30 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV230FHM-N30 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | - |
| Outline Dim. | 517.2(H)×303(V)×12.4(D)mm |
| Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 75%NTSC |
| Light Source | WLED [16S4P], 30K hours, W/O Driver |
| Weight | 2.10Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
MV230FHM-N30 LCD Panel Shipping and Package :
At times, when we ship to remote areas, there may be an additional shipping fee that applies to the order. We kindly ask for your understanding in such situations, as these charges are beyond our control. We assure you that we are committed to ensuring a smooth delivery to these locations, and these fees are necessary for us to make this happen.
We value your business and strive to make each delivery experience a positive one. We assure you that we will do our best to keep additional fees as low as possible while ensuring on-time delivery of your order. We appreciate your trust in us and look forward to serving you with the utmost care and professionalism.
Q: Can You declare my order of MV230FHM-N30 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of MV230FHM-N30 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of MV230FHM-N30 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order MV230FHM-N30 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
