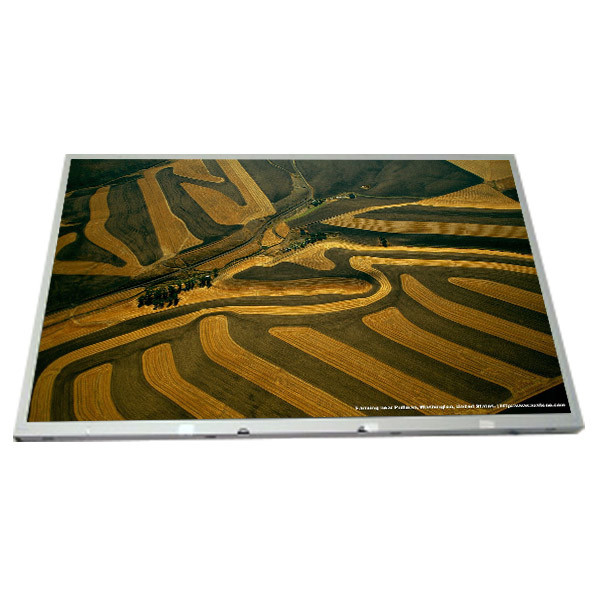

LM185WH1-TLA4 18.5 inch 1366*768 LCD Screen Module for Computer

All Category

Floor Standing Digital Signage

LM185WH1-TLA4 18.5 inch 1366*768 LCD Screen Module for Computer

Brand Name:	LG Display
Model Number:	LM185WH1-TLA4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM185WH1-TLA4

Diagonal Size:

18.5"

Resolution:

1366(RGB)×768, WXGA 84PPI

Active Area:

409.8(W)×230.4(H) Mm

Outline Dim.:

430.4(W)×254.6(H)×13.5(D) Mm

Luminance:

300 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Designed For:

Desktop Monitor

Frame Rate:

Interface Type:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM185WH1-TLA4 18.5 inch 1366*768 LCD Screen Module for Computer

LM185WH1-TLA4 LCD Panel Product details :

Brand	LG Display
Model P/N	LM185WH1-TLA4
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	413.4(W)×234.0(H) mm
Outline Size	430.4(W)×254.6(H)×13.5(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	1.1/3.9 (Typ.)(Tr/Td)
Display Colors	16.7M 72%NTSC
Lamp Type	2 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.55/1.65Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM185WH1-TLA4 18.5 inch 1366*768 LCD Screen Module for Computer

LM185WH1-TLA4 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM185WH1-TLA4 LCD Panel Shipping and Package :

LM185WH1-TLA4 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM185WH1-TLA4 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM185WH1-TLA4 LCD Panel FAQ :

Q: How to make payment of LM185WH1-TLA4 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of LM185WH1-TLA4?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of LM185WH1-TLA4 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90 days warranty .
