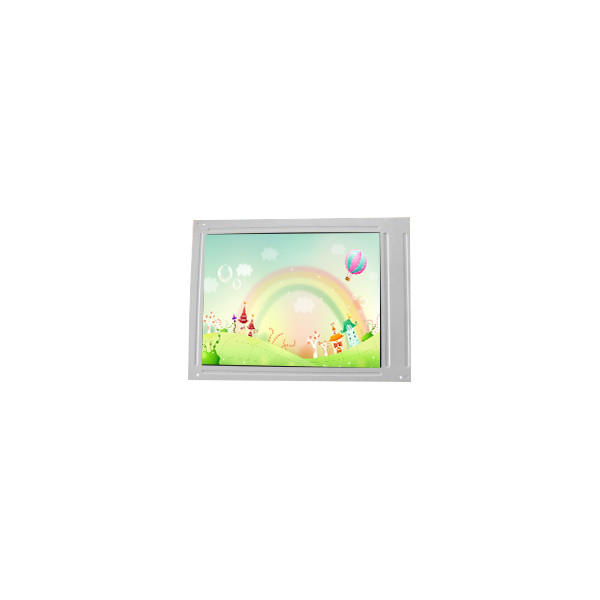

F052A07-601 5.2 inch 720*1280 LCD Screen Display For Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F052A07-601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F052A07-601 | Diagonal Size: | 5.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1280, WXGA 282PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 64.8(W)×115.2(H) Mm |
| Application: | Mobile Phone | Color Depth: | 16.7M 67%NTSC |
| Response: | 25 (Typ.)(Tr+Td) Ms | Good View At: | Symmetry |
Product Description
F052A07-601 5.2 inch 720*1280 LCD Screen Display For Phone
F052A07-601 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F052A07-601 |
| Diagonal Size | 5.2" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1280, WXGA 282PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×115.2(H) mm |
| Bezel Opening | - |
| Outline (mm) | 66.8×121×0.3 (H×V×D) |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.15+0.15 mm |
| Transmissivity | 3.6% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 67%NTSC |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Suggest COG NT35521S |
| Max. Ratings | Storage Temp.: -30 ~ 75 °C Operating Temp.: -20 ~ 70 °C |
F052A07-601 LCD Panel Shipping and Package :
We want to remind our valued customers about a special shipping consideration for some of our products, specifically servomotors that exhibit high magnetic fields. In order to ensure the safety of our customers and the proper handling of these products, we can only ship them via EMS delivery.
We understand that this may cause some inconvenience for those who prefer other forms of shipping, but safety is our top priority. We appreciate your understanding and cooperation in this matter.
Rest assured that we will do everything within our power to ensure that your order is processed and delivered in a timely and efficient manner. We value our relationship with our customers and want to ensure that you receive the best service possible.
Please feel free to reach out to our customer service team with any questions or concerns you may have regarding the special shipping consideration for highly magnetic products. We are always happy to assist you and provide you with the necessary information to make an informed decision.
Thank you for choosing our products and for your continued support. We look forward to serving you and providing you with high-quality products that meet your needs.
Q: Can you give me a discount if I need a large quantity of F052A07-601 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of F052A07-601 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of F052A07-601 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of F052A07-601 ?
A: Of course!sample order is welcome !
