LCD Screen Display Panel

TX08D106VM0AAA 3.0 inch 320*480 LCD Screen Display For KOE

All Category

Floor Standing Digital Signage

TX08D106VM0AAA 3.0 inch 320*480 LCD Screen Display For KOE

Brand Name:	KOE
Model Number:	TX08D106VM0AAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX08D106VM0AAA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×480, HVGA 192PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

42.24(W)×63.36(H) Mm

Application:

Mobile Phone

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

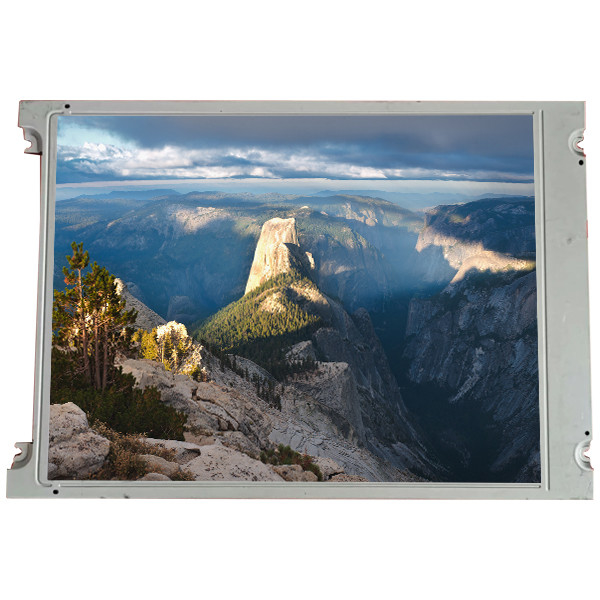

TX08D106VM0AAA 3.0 inch 320*480 LCD Screen Display For KOE

TX08D106VM0AAA LCD Panel Product details :

Brand	HITACHI
Model P/N	TX08D106VM0AAA
Diagonal Size	3.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×480, HVGA 192PPI
Pixel Format	RGB Vertical Stripe
Active Area	42.24(W)×63.36(H) mm
Bezel Opening	-
Outline Dim.	47.34(H)×72.94(V)×1.9(D) mm
Treatment	-
Luminance	400 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	35 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	262K 90%NTSC
Light Source	WLED [5S1P], W/O Driver
Weight	TBD
Designed For	Mobile Phone
Frame Rate	-
Touch Panel	Without
Interface Type	CPU, 40 pinsConnector
Power Supply	1.8/2.8V (Typ.)(IOVCC1/VCI)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
TX08D106VM0AAA 3.0 inch 320*480 LCD Screen Display For KOE

TX08D106VM0AAA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX08D106VM0AAA LCD Panel Shipping and Package :

TX08D106VM0AAA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX08D106VM0AAA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX08D106VM0AAA LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: When will my order TX08D106VM0AAA ship?

A: The order are shipped within 1-2 working days after received the payment.

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel TX08D106VM0AAA I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
