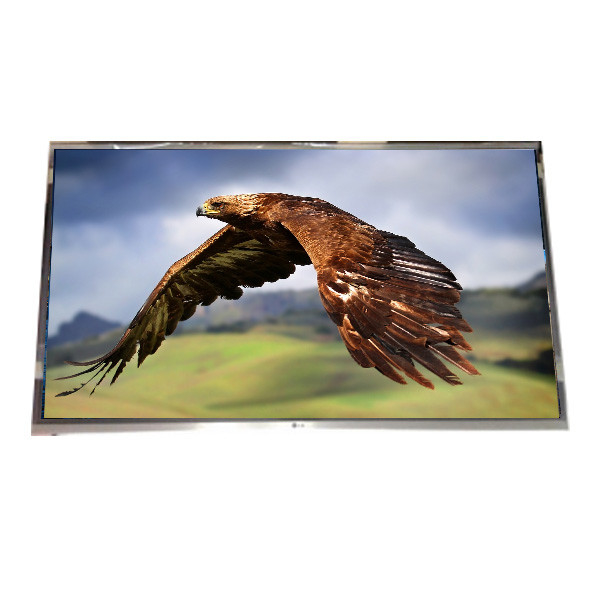

P290IAN01.0 CELL 28.6 inch 1920*540 LCD Screen Display For Digital Signage
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P290IAN01.0 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P290IAN01.0 CELL | Diagonal Size: | 28.6" (1/2 Cut Of 32.0") |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 1920(RGB)×540 69PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 698.4(W)×196.425(H) Mm |
| Application: | Digital Signage ,Stretched Bar LCD | Frame Rate: | 60Hz |
Product Description
P290IAN01.0 CELL 28.6 inch 1920*540 LCD Screen Display For Digital Signage
P290IAN01.0 CELL LCD Panel Product details :
| Brand | AUO |
| Model P/N | P290IAN01.0 CELL |
| Diagonal Size | 28.6" (1/2 cut of 32.0") |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×540 69PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 698.4(W)×196.425(H) mm |
| Bezel Opening | - |
| Outline Dim. | 714.4(W)×216.17(H)×1.6(D) mm |
| Treatment | Antiglare (Haze 2%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AMVA, Normally Black, Transmissive |
| Plate Thickness | - |
| Transmittance | 4.1% (Typ.)(with Polarizer) |
| Support Color | 16.7M 72% NTSC |
| Light Source | No B/L , W/O Driver |
| Weight | - |
| Designed For | Digital Signage ,Stretched Bar LCD |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 6 source + 1 gate chips |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
P290IAN01.0 CELL lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
P290IAN01.0 CELL LCD Panel Shipping and Package :
P290IAN01.0 CELL LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
P290IAN01.0 CELL LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
P290IAN01.0 CELL LCD Panel FAQ :
Q: Can I pay my goods P290IAN01.0 CELL by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods P290IAN01.0 CELL ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of P290IAN01.0 CELL ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of P290IAN01.0 CELL ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
