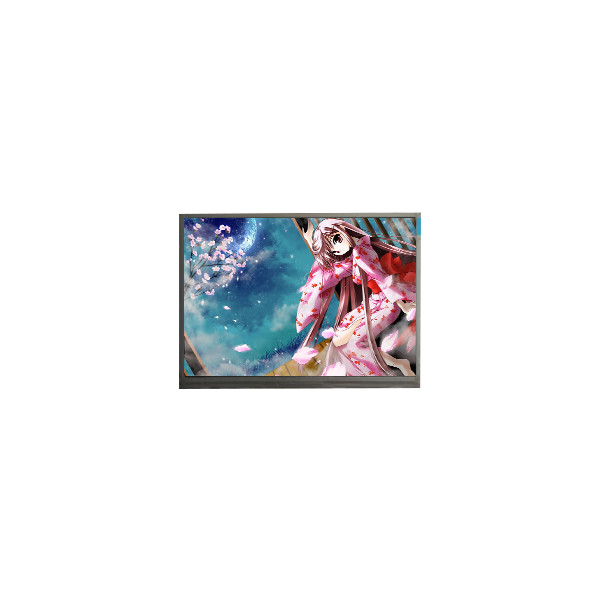

F070A60HD3T-6T1 7.0 inch 720*1640 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F070A60HD3T-6T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F070A60HD3T-6T1 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1640 257PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 70.956(W)×161.622(H) Mm |
| Application: | Mobile Phone | Touchscreen: | In-Cell Touch, I²C/SPI |
| Response: | 25 (Typ.)(Tr+Td) Ms | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
Product Description
F070A60HD3T-6T1 7.0 inch 720*1640 LCD Screen Display
F070A60HD3T-6T1 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F070A60HD3T-6T1 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1640 257PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 70.956(W)×161.622(H) mm |
| Bezel Opening | - |
| Outline(mm) | 72.956(W)×166.622(H)×0.3(D) |
| Luminance | 0 (cd/m²) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.15+0.15 mm |
| Color Depth | 16.7M 71% NTSC |
| Mass | - |
| Refresh Rate | 60Hz |
| Treatment | Without Polarizer |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Work Mode | AAS, Normally Black, Transmissive |
| Response | 25 (Typ.)(Tr+Td) ms |
| Transmissivity | 3.82% (Typ.) |
| Backlight | No B/L |
| Used for | Mobile Phone |
| Touchscreen | In-Cell Touch, I²C/SPI |
| Driver IC list | SuggestCOGILI9881H, NT36525, NT36525B, ILI9881H, FT8006P, FT8006S-AA |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
F070A60HD3T-6T1 lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
F070A60HD3T-6T1 LCD Panel Shipping and Package :
F070A60HD3T-6T1 LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
F070A60HD3T-6T1 LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
F070A60HD3T-6T1 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of F070A60HD3T-6T1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods F070A60HD3T-6T1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of F070A60HD3T-6T1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
