LCD Screen Display Panel

MV315QUM-N10 32.0 inch 4K LCD Screen Display For Desktop Monitor

All Category

Floor Standing Digital Signage

MV315QUM-N10 32.0 inch 4K LCD Screen Display For Desktop Monitor

Brand Name:	BOE
Model Number:	MV315QUM-N10
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MV315QUM-N10

Diagonal Size:

32.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

3840(RGB)×2160, UHD 139PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

697.306(W)×392.234(H) Mm

Application:

Desktop Monitor

Frame Rate:

Light Source:

WLED [11S4P×2CN], 30K Hours, W/O Driver

Power Supply:

10.0V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

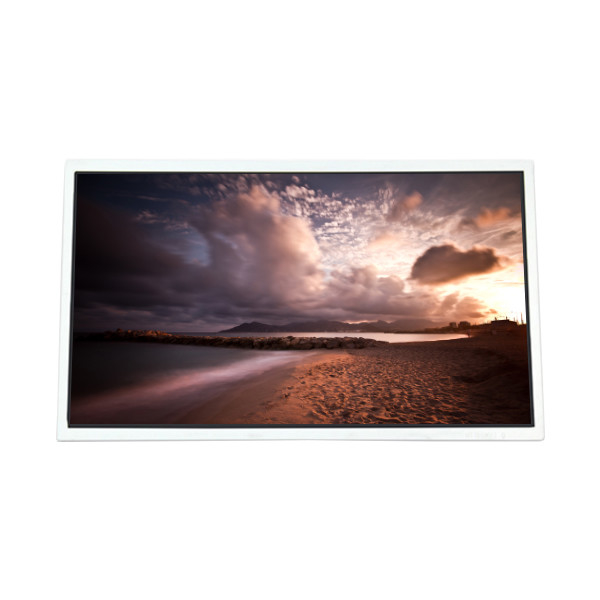

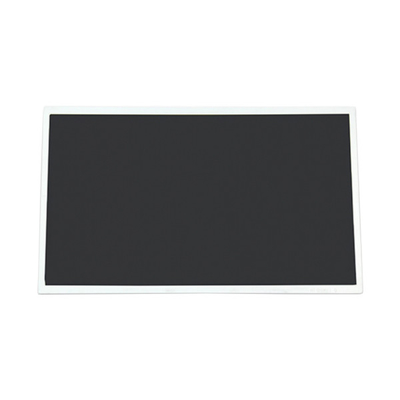

MV315QUM-N10 32.0 inch 4K LCD Screen Display For Desktop Monitor

MV315QUM-N10 LCD Panel Product details :

Brand	BOE
Model P/N	MV315QUM-N10
Diagonal Size	32.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)×2160, UHD 139PPI
Pixel Format	RGB Vertical Stripe
Active Area	697.306(W)×392.234(H) mm
Bezel Opening	-
Outline Dim.	709.4(H)×412(V)×15.2(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	1.07B 100%sRGB
Light Source	WLED [11S4P×2CN], 30K hours, W/O Driver
Weight	4.55Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pinsConnector
Power Supply	10.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

MV315QUM-N10 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

MV315QUM-N10 LCD Panel Shipping and Package :

MV315QUM-N10 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

MV315QUM-N10 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

MV315QUM-N10 LCD Panel FAQ :

Q: How to order lcd panel MV315QUM-N10 ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the MV315QUM-N10 before shipping ?

A: Of course , lcd screen MV315QUM-N10 was Strictly tested before shipping.

Q: What happen if the MV315QUM-N10 received can't work ?

A: MV315QUM-N10 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: How long the warranty of the MV315QUM-N10 ?

A: 90 days .
