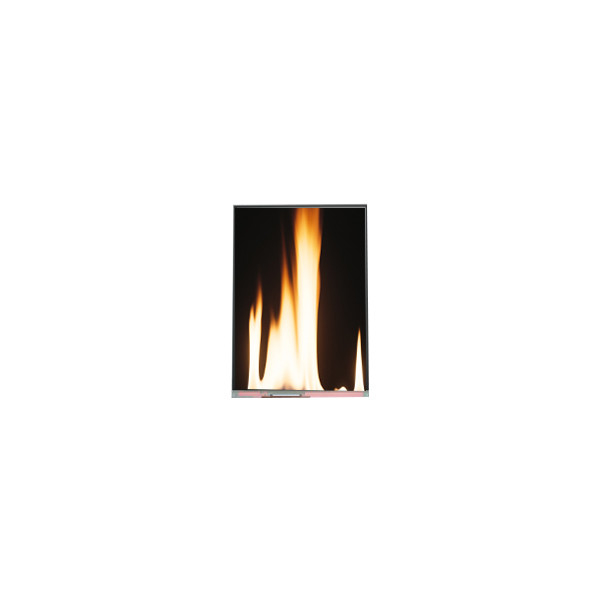

LX066A1BB01 6.5 inch 1080*2408 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LX066A1BB01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LX066A1BB01 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 1080(RGB)×2408 400PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.4228(W)×152.571(H) Mm |
| Application: | Mobile Phone | Touchscreen: | In-Cell Touch |
| Lamp Type: | No B/L | Environment: | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
Product Description
LX066A1BB01 6.5 inch 1080*2408 LCD Screen Display
LX066A1BB01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LX066A1BB01 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1080(RGB)×2408 400PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.4228(W)×152.571(H) mm |
| Bezel Opening | - |
| Outline Size | 69.932(W)×156.56(H)×0.28(D) mm |
| Surface | - |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | New Mode2, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Max.)(Tr+Td) |
| Glass Depth | 0.14+0.14 mm |
| Transmissivity | 5.32% (Typ.) |
| Display Colors | 99%DCI-P3 |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | In-Cell Touch |
| Driver IC | COG Suggest ILI7807S |
| Panel Weight | 7.60g (Typ.) |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| Full New LCD Panel LX066A1BB01 6.5 inch Touch Display Screen | |
LX066A1BB01 lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
LX066A1BB01 LCD Panel Shipping and Package :
LX066A1BB01 LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
LX066A1BB01 LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
LX066A1BB01 LCD Panel FAQ :
Q: How to make payment of LX066A1BB01 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LX066A1BB01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LX066A1BB01 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LX066A1BB01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
