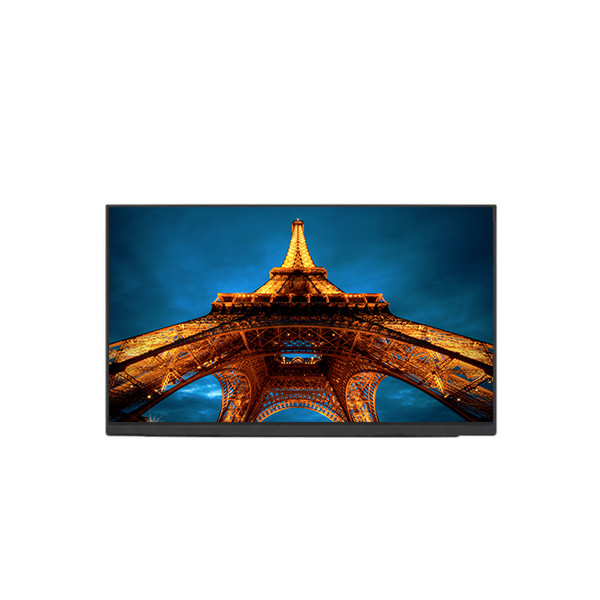

MV238QHM-NX0-485Z 23.8 inch 2560*1440 LCD Screen Display For Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238QHM-NX0-485Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238QHM-NX0-485Z | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2560(RGB)×1440, Quad-HD 123PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 526.848(W)×296.352(H) Mm |
| Application: | Desktop Monitor | Support Color: | 16.7M 99% SRGB |
| Response Time: | 14 (Typ.)(G To G) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
Product Description
MV238QHM-NX0-485Z 23.8 inch 2560*1440 LCD Screen Display For Desktop Monitor
MV238QHM-NX0-485Z LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV238QHM-NX0-485Z |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2560(RGB)×1440, Quad-HD 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 526.848(W)×296.352(H) mm |
| Bezel Opening | - |
| Outline Dim. | 535(W)×313(H) ×13.7(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 99% sRGB |
| Light Source | 16S4P WLED , 30K hours , Without Driver |
| Weight | 2.26Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 100Hz |
| Touch Panel | Without |
| Interface Type | LVDS (4 ch, 8-bit) , 70 pins Connector |
| Power Supply | 10.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
