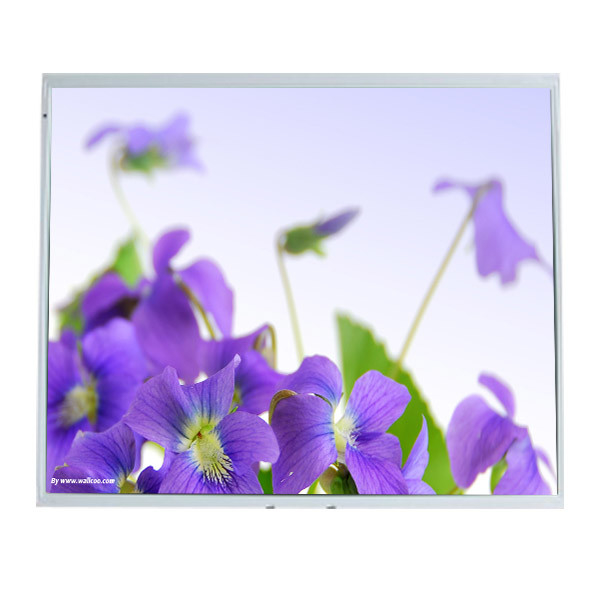

LM171WX3-TLA3 17.1 inch 30pins LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG LCD |
| Model Number: | LM171WX3-TLA3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM171WX3-TLA3 | Diagonal Size: | 17.1" |
|---|---|---|---|
| Resolution: | 1440(RGB)×900, WXGA+ 99PPI | Active Area: | 367.2(W)×229.5(H) Mm |
| Outline (mm): | 389.2(W)×254.5(H)×12(D) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Weight: | 1.36/1.43Kgs (Typ./Max.) | Viewing Angle: | 80/80/75/85 (Typ.)(CR≥10) |
| Signal Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector | Used For: | Desktop Monitor |
Product Description
LM171WX3-TLA3 17.1 inch 30pins LCD Panel Display
LM171WX3-TLA3 LCD Panel Product details :
| Brand | LG |
| Model P/N | LM171WX3-TLA3 |
| Diagonal Size | 17.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1440(RGB)×900, WXGA+ 99PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 367.2(W)×229.5(H) mm |
| Bezel Opening | 370.6(W)×232.9(H) mm |
| Outline Size | 389.2(W)×254.5(H)×12(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 80/80/75/85 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 16.7M 60%NTSC |
| Frequency | 60Hz |
| Weight | 1.36/1.43Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 12%), Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Lamp Type | 2 pcs CCFL , 40K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LM171WX3-TLA3 17.1 inch 30pins LCD Panel Display | |
