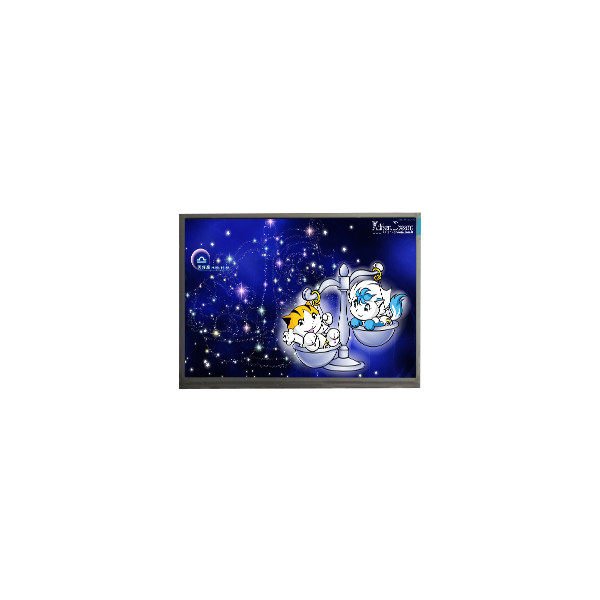

F065A09-6T1 6.5 inch 720*1600 LCD Screen Display For Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F065A09-6T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F065A09-6T1 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1600 269PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 67.93(W)×150.96(H) Mm |
| Application: | Mobile Phone | Refresh Rate: | 60Hz |
| Touch Panel: | In-Cell Touch, I²C/SPI | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
Product Description
F065A09-6T1 6.5 inch 720*1600 LCD Screen Display For Mobile Phone
F065A09-6T1 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F065A09-6T1 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1600 269PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.93(W)×150.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 69.932(H)×156.56(V)×0.3(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr/Tf) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Plate Thickness | 0.15+0.15 mm |
| Transmittance | 3.54% (Typ.)(with Polarizer) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch, I²C/SPI |
| D-IC Detail | COG Suggest ILI9881H, NT36525,NT36525B, HX83102-B |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
