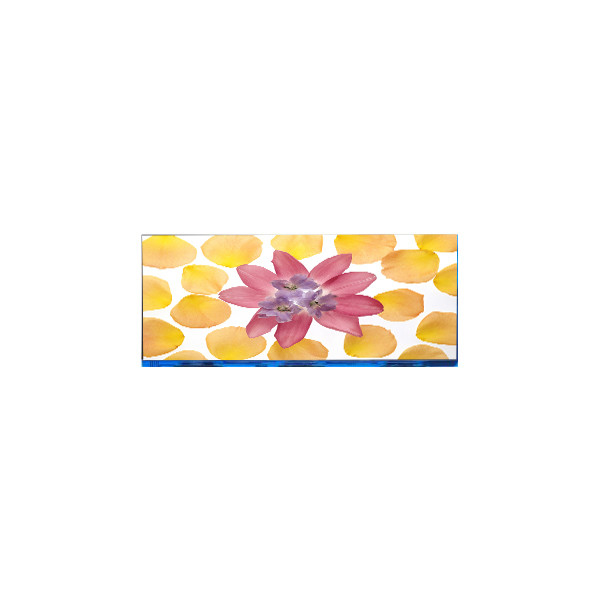

E102AWF6 R1 10.2 inch 1920*532 LCD Screen Display

Brand Name:	IVO
Model Number:	E102AWF6 R1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

E102AWF6 R1

Diagonal Size:

10.2"

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

1920×532(RGB) 195PPI

Pixel Format:

RGB Horizontal Stripe

Active Area:

248.832(W)×68.9472(H) Mm

Application:

Automotive Display

Refresh Rate:

Signal Interface:

LVDS (1 Ch, 8-bit) + SPI, 60 PinsFPC

Input Voltage:

3.3/5.7/-5.7/18/-11V (Typ.)(VCC/VSP/VSN/VGH/VGL)

Supply Ability:

100000 Unit/Units per Month

Product Description

E102AWF6 R1 10.2 inch 1920*532 LCD Screen Display

E102AWF6 R1 LCD Panel Product details :

Brand	IVO
Model P/N	E102AWF6 R1
Diagonal Size	10.2"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	1920×532(RGB) 195PPI
Pixel Format	RGB Horizontal Stripe
Active Area	248.832(W)×68.9472(H) mm
Bezel Opening	-
Outline Size	255.332(W)×79.05(H)×0.77(D) mm
Brightness	0 cd/m²
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.25+0.25 mm
Display Colors	16.7M 70%NTSC
Frequency	60Hz
Weight	36.0g (Max.)
Surface	Hard coating (3H), Reflection 5.5% (Max.)
Contrast Ratio	-
Display Mode	IPS, Normally Black, Transmissive
Response Time	25 (Max.)(Tr+Td)
Transmissivity	3.3% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Automotive Display
Driver IC	COGBuilt-in HX82102-A-LT+ HX8689-A-LT
Signal Interface	LVDS (1 ch, 8-bit) + SPI, 60 pinsFPC
Input Voltage	3.3/5.7/-5.7/18/-11V (Typ.)(VCC/VSP/VSN/VGH/VGL)
Environment	Operating Temp.: -40 ~ 85 °C ;Storage Temp.: -40 ~ 90 °C

E102AWF6 R1 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

E102AWF6 R1 LCD Panel Shipping and Package :

E102AWF6 R1 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

E102AWF6 R1 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

E102AWF6 R1 LCD Panel FAQ :

Q: How to make payment of E102AWF6 R1 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of E102AWF6 R1 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of E102AWF6 R1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of E102AWF6 R1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
