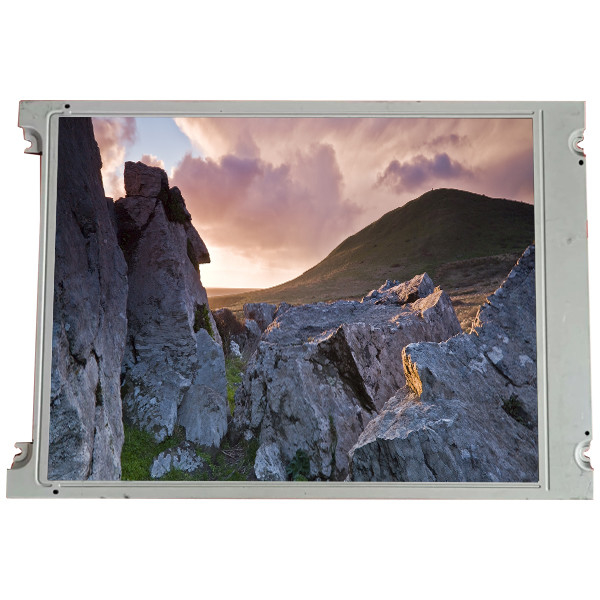

TMD54X110CBB 21.3 inch 1600*1200 LCD Screen Display For Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TMD54X110CBB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TMD54X110CBB | Diagonal Size: | 21.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1600(RGB)×1200, UXGA 94PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 432(W)×324(H) Mm |
| Application: | Desktop Monitor | Refresh Rate: | 60Hz |
Product Description
TMD54X110CBB 21.3 inch 1600*1200 LCD Screen Display For Desktop Monitor
TMD54X110CBB LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TMD54X110CBB |
| Diagonal Size | 21.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×1200, UXGA 94PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 432(W)×324(H) mm |
| Bezel Opening | - |
| Outline Size | 460.6(W)×362(H)×25.5(D) mm |
| Treatment | Antiglare |
| Luminance | 280 cd/m² (Typ.) |
| Contrast Ratio | 550 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) |
| Response | 16/14 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AS-IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 99%sRGB |
| Backlight | 6 pcsCCFL, No Driver |
| Mass | 3.45/4.00Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
| TMD54X110CBB 21.3 inch 1600*1200 LCD Screen Display For Desktop Monitor | |
TMD54X110CBB LCD Panel Shipping and Package :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel TMD54X110CBB I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
