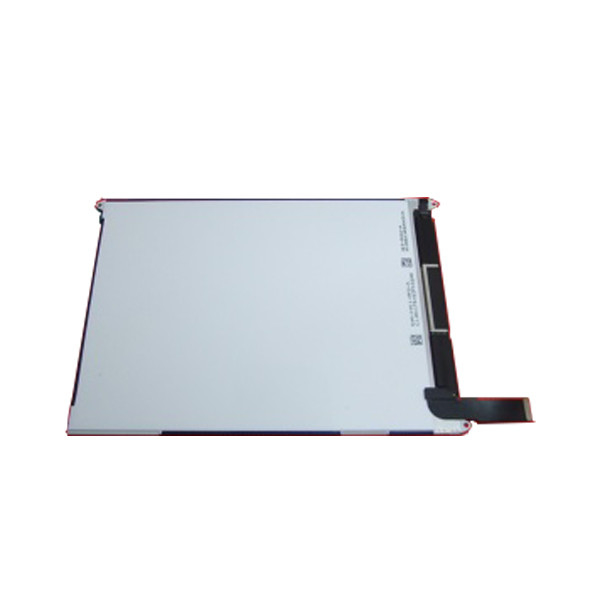

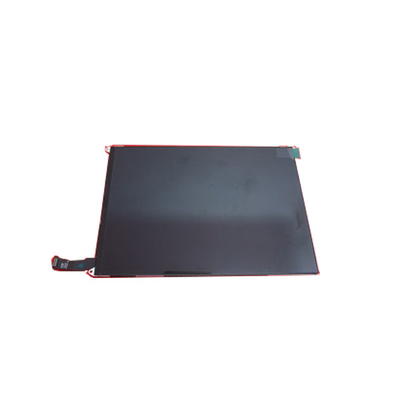

B084SN01 V0 8.4 inch 800*600 tft lcd display for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B084SN01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B084SN01 V0 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 119PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 170.4(W)×127.8(H) Mm |
| Application: | Industrial | Display Colors: | 262K 49%NTSC |
Product Description
B084SN01 V0 8.4 inch 800*600 tft lcd display for Industrial
B084SN01 V0 LCD Panel Product details :
| Brand | AU Optronics |
| Model P/N | B084SN01 V0 |
| Diagonal Size | 8.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 170.4(W)×127.8(H) mm |
| Bezel Opening | 173.8(W)×131.2(H) mm |
| Outline Size | 203(W)×142.5(H)×6(D) mm |
| Brightness | 150 cd/m² (Typ.) |
| Viewing Angle | 40/40/30/10 (Min.)(CR≥10) |
| Best View on | 12 o'clock |
| Display Colors | 262K 49%NTSC |
| Frequency | - |
| Weight | 230±10g |
| Surface | - |
| Contrast Ratio | 250:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20/30 (Typ.)(Tr/Td) |
| Lamp Type | 1 pcs CCFL , 20K hours , Without Driver |
| Touch Screen | Without |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 70 °C |
