LCD Laptop Screen

N156B6-P03 15.6 inch 1366*768 LCD Screen Display

All Category

Floor Standing Digital Signage

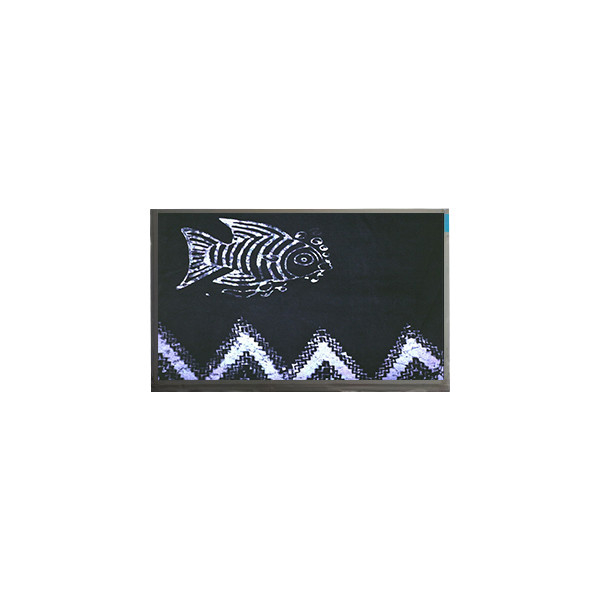

N156B6-P03 15.6 inch 1366*768 LCD Screen Display

Brand Name:	Chimei Innolux
Model Number:	N156B6-P03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

N156B6-P03

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, CELL , COG

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Application:

Laptop

Refresh Rate:

D-IC Detail:

Built-in 6 Source COF + 3 Gate COG Chips

Signal Interface:

LVDS (1 Ch, 6-bit) , 40 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

N156B6-P03 15.6 inch 1366*768 LCD Screen Display

N156B6-P03 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	N156B6-P03
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, CELL , COG
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	-
Outline Dim.	353.63(W)×203.08(H) ×1.27(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	650:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	3/8 (Typ.)(Tr/Td)
Viewing Angle	45/45/20/45 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Glass Depth	0.50+0.50 mm
Transmissivity	6.3% (Typ.)(with Polarizer)
Support Color	262K 60% NTSC
Light Source	No B/L , With LED Driver
Shape Style	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	Built-in 6 source COF + 3 gate COG chips
Signal Interface	LVDS (1 ch, 6-bit) , 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

N156B6-P03 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

N156B6-P03 LCD Panel Shipping and Package :

N156B6-P03 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

N156B6-P03 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

N156B6-P03 LCD Panel FAQ :

Q: How long is the warranty of N156B6-P03 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of N156B6-P03 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for N156B6-P03 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of N156B6-P03 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
