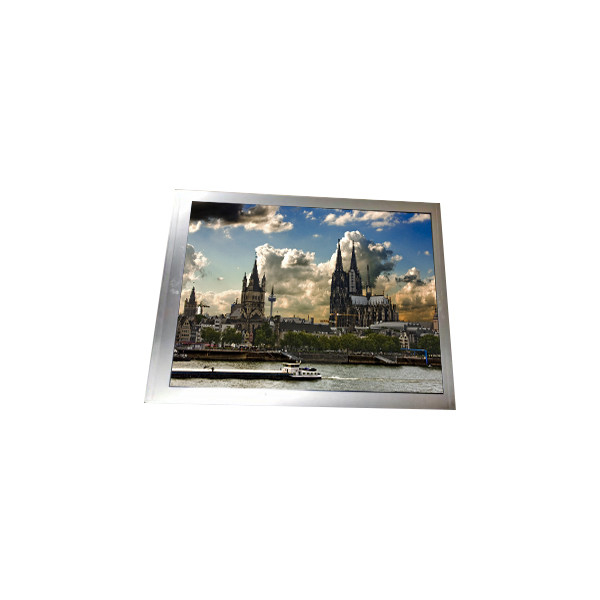

E643FDE51.A 6.4 inch LCD Screen Display 1080*2400 OLED Display
Product Details:
| Place of Origin: | China |
| Brand Name: | EDO |
| Model Number: | E643FDE51.A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | E643FDE51.A | Diagonal Size: | 6.4" |
|---|---|---|---|
| Panel Type: | AM-OLED, OLED , COG | Contrast Ratio: | 60000:1 (Min.) (TM) |
| Pixel Format: | Sub-Pixel Rendering | Active Area: | 67.07(W)×149.04(H) Mm |
| Application: | Mobile Phone | Touch Panel: | PCAP |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥1600) | Support Color: | 16.7M 100% DCI-P3 |
| Highlight: | E643FDE51.A,E643FDE51.A LCD Screen Display,6.4 inch LCD Screen Display |
||
Product Description
E643FDE51.A 6.4 inch LCD Screen Display 1080*2400 OLED Display
E643FDE51.A LCD Panel Product details :
| Brand | EDO |
| Model P/N | E643FDE51.A |
| Diagonal Size | 6.4" |
| Panel Type | AM-OLED, OLED , COG |
| Resolution | 1080(RGB)×2400 333PPI |
| Pixel Format | Sub-Pixel Rendering |
| Active Area | 67.07(W)×149.04(H) mm |
| Bezel Opening | - |
| Outline Dim. | 68.968(W)×153.44(H) mm |
| Treatment | - |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 60000:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | 2 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) |
| Operating Mode | - |
| Support Color | 16.7M 100% DCI-P3 |
| Light Source | self |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | PCAP |
| Driver IC | COG Built-in CH13726G3-03 |
| Interface Type | MIPI (4 data lanes) |
| Power Supply | 1.8/3.3/7.6V (Typ.)(VDDIO/VCI/VSP) |
| Environment | Operating Temp.: -20 ~ 70 °C ; - |
E643FDE51.A lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
E643FDE51.A LCD Panel Shipping and Package :
E643FDE51.A LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
E643FDE51.A LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
E643FDE51.A LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of E643FDE51.A ?
A: Of course!sample order is welcome !
Q: How to make payment of E643FDE51.A ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of E643FDE51.A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
