products details

Home > Products >

LCD Touch Panel Display

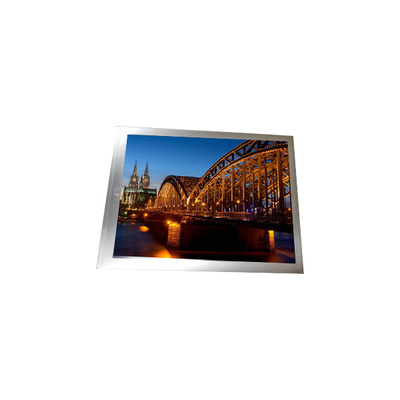

F055A33-6T1 5.5 inch 1080*1920 LCD Screen Display

All Category

Floor Standing Digital Signage

F055A33-6T1 5.5 inch 1080*1920 LCD Screen Display

Brand Name:	Innolux
Model Number:	F055A33-6T1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

F055A33-6T1

Diagonal Size:

Panel Type:

LTPS TFT-LCD, CELL , Q-CUT (Full Cell)

Resolution:

1080(RGB)×1920, FHD 400PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.526(W)×121.824(H) Mm

Application:

Mobile Phone

Support Color:

16.7M 71% NTSC

Response Time:

25 (Typ.)(Tr+Td)

Operating Mode:

AAS, Normally Black, Transmissive

Supply Ability:

100000 Unit/Units per Month

Product Description

F055A33-6T1 5.5 inch 1080*1920 LCD Screen Display

F055A33-6T1 LCD Panel Product details :

Brand	Innolux
Model P/N	F055A33-6T1
Diagonal Size	5.5"
Panel Type	LTPS TFT-LCD, CELL , Q-CUT (Full Cell)
Resolution	1080(RGB)×1920, FHD 400PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.526(W)×121.824(H) mm
Bezel Opening	-
Outline Dim.	70.126(W)×126.124(H)×1(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	4.01% (Typ.)
Support Color	16.7M 71% NTSC
Light Source	No B/L
Weight	-
Designed For	Mobile Phone
Frame Rate	-
Touch Panel	In-Cell Touch, I²C/SPI
D-IC Detail	COG Suggest HX83112-A, HX83112-F, GC7302, ILI7807S
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

F055A33-6T1 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

F055A33-6T1 LCD Panel Shipping and Package :

F055A33-6T1 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

F055A33-6T1 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

F055A33-6T1 LCD Panel FAQ :

Q: How to make payment of F055A33-6T1 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of F055A33-6T1 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of F055A33-6T1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90 days warranty .
