Brand Name: | LG LCD |
Model Number: | LM170E03-TLC1 |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

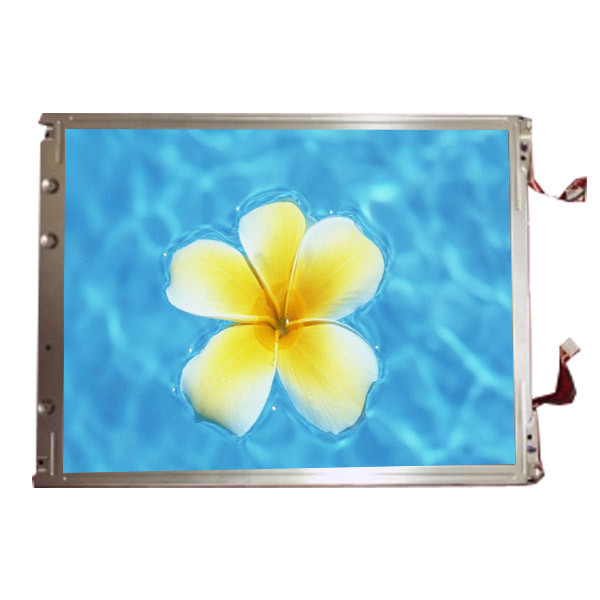

LM170E03-TLC1 17.0 inch LCD Panel 1280*1024 LCD Display
LM170E03-TLC1 LCD Panel Product details :
Brand | LG LCD |
Model P/N | LM170E03-TLC1 |
Diagonal Size | 17.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×1024, SXGA 96PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 337.92(W)×270.336(H) mm |
Bezel Opening | 341.6(W)×274.0(H) mm |
Outline (mm) | 358.5×296.5×17.5 (H×V×D) |
Treatment | Glare (Haze 0%), Hard coating (2H) |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/75/85 (Typ.)(CR≥10) |
Response | 1.3/3.7 (Typ.)(Tr/Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 16.7M 71%NTSC |
Backlight | 4 pcsCCFL, 50K hours, No Driver |
Mass | 1.89/1.94Kgs (Typ./Max.) |
Used for | Desktop Monitor |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (2 ch, 8-bit), Connector30 pins |
Voltage Supply | 5.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LM170E03-TLC1 17.0 inch LCD Panel 1280*1024 LCD Display |
LM170E03-TLC1 LCD Panel Shipping and Package :
LM170E03-TLC1 LCD Screen Tariffs and fees:
LM170E03-TLC1 LCD Panel FAQ :
Q: How to make payment of LM170E03-TLC1 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LM170E03-TLC1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LM170E03-TLC1 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LM170E03-TLC1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
