LCD Screen Display Panel

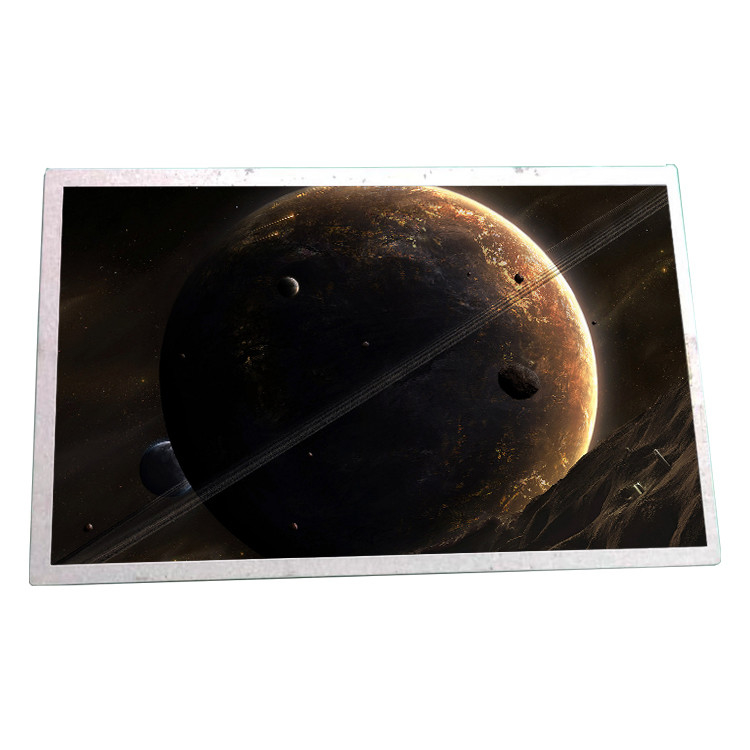

HSD100IFW1-F03 LCD Screen Panel 10.1 inch LCD Display Module

All Category

Floor Standing Digital Signage

HSD100IFW1-F03 LCD Screen Panel 10.1 inch LCD Display Module

Brand Name:	HannStar
Model Number:	HSD100IFW1-F03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD100IFW1-F03

Diagonal Size:

10.1"

Resolution:

1024(RGB)×600, WSVGA 118PPI

Active Area:

220.416(W)×129.15(H) Mm

Bezel Opening:

223.42(W)×132.15(H) Mm

Outline Size:

235(W)×145.8(H) ×5.8(D) Mm

Surface:

Glare (Haze 0%), Hard Coating (3H)

Application:

Netbook PC / Digital Photo Frame / Portable DVD Player

Input Voltage:

3.3V (Typ.)

Signal Interface:

LVDS (1 Ch, 6-bit) , 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD100IFW1-F03 LCD Screen Panel 10.1 inch LCD Display Module

HSD100IFW1-F03 LCD Panel Product details :

HannStar LCD Screen HSD100IFW1-F03
Panel Brand	HannStar
Model P/N	HSD100IFW1-F03
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 118PPI
Pixel Format	RGB Vertical Stripe
Active Area	220.416(W)×129.15(H) mm
Bezel Opening	223.42(W)×132.15(H) mm
Outline Size	235(W)×145.8(H) ×5.8(D) mm
Surface	Glare (Haze 0%), Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	5/20 (Typ.)(Tr/Td)
Display Colors	262K
Lamp Type	WLED , With LED Driver
Frequency	60Hz
Touch Screen	Without
Application	Netbook PC / Digital Photo Frame / Portable DVD Player
Signal Interface	LVDS (1 ch, 6-bit) , 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
HSD100IFW1-F03 LCD Screen Panel 10.1 inch LCD Display Module

Important Information about HSD100IFW1-F03 LCD Panel:

Please note that LCD screens can vary in size and resolution depending on the model. The resolution of an LCD screen is fixed and cannot be adjusted. Therefore, it is crucial to verify that the size and resolution of the screen match the specifications of your machine before making a purchase.

Here are key considerations:

Size and Resolution: Ensure that the dimensions and resolution of the LCD panel align with the requirements of your device. The size and resolution specifications must be compatible with your machine to ensure proper functionality.

Compatibility Check: Before purchasing, perform a compatibility check to confirm that the HSD100IFW1-F03 LCD panel is suitable for your specific device model. Using an incompatible screen may result in display issues or improper fitment.

Resolution Limitations: Keep in mind that the resolution of an LCD screen is fixed and cannot be adjusted. Therefore, choose a screen with a resolution that meets the requirements of your application.

About Us - HSD100IFW1-F03 LCD Panel Supplier:

We are a longstanding provider of LCD/LED screens, specializing in product sales and distribution across various well-known brands. Our extensive range includes screens from reputable manufacturers such as SHARP, MITSUBISHI, NEC, OPTREX, KYOCERA, AUO, CMO, INNOLUX, Samsung, and LG Display.

Key features of our services include:

Diverse Product Range: We offer a wide variety of LCD/LED screens, spanning from compact 1.5-inch panels to expansive 88-inch displays.Our products cater to various applications, including Car GPS, handheld devices, industrial screens, tablets, laptops, monitors, and more.

Quality Assurance: All our screens are sourced as original grade A products, ensuring superior quality and performance. Before shipment, each screen undergoes comprehensive testing to guarantee functionality and reliability.

Customer Commitment: We strive to provide exceptional service and support to our customers. Your satisfaction is our priority, and we are dedicated to assisting you with any inquiries or requirements.

HSD100IFW1-F03 LCD Panel Shipping and Package :

HSD100IFW1-F03 LCD Panel Return Policy:

If you have received a damaged or incorrect item, kindly reach out to us via message, and we will promptly arrange for its return.

Returns are accepted within 30 days from the date of receiving the item.

When preparing the return, please ensure that you pack the product securely, similar to how it was originally packaged. LCD screens are highly fragile, and it's crucial to handle them with care during shipment. Please do not use alternative packaging materials.

For instances where the buyer has purchased the wrong product or size, the buyer is responsible for covering the return shipping costs.

HSD100IFW1-F03 LCD Panel FAQ :

Q: How long is the warranty of HSD100IFW1-F03 ?

A: 90days warranty .

Q: How can I trace my order of HSD100IFW1-F03 ?

A: we will give you tracking number then you can trace your order from website.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of lcd module HSD100IFW1-F03 at a very low value ?

A: Yes , we can . pls inform us before shipping .
